Differential to Single Ended Converter, 1000-01 Series

    Buy Online View Cart





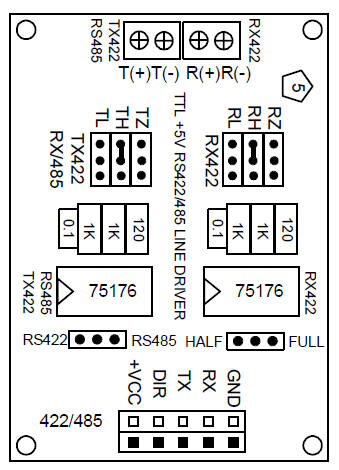

1000 series

Enlarge

Dual-channel Differential to Single Ended Converter
Features:
  • Converts Two Channels of TTL Differential Signals to Two Channels of Single Ended Signals
  • Jumper Selectable 1 KOhm Pull-ups, 1 KOhm Pull-downs and 120 Ohm Line-to-Line Termination on all Inputs
  1 KOhm Pull-down Resistor
  1 KOhm Pull-down Resistor Jumper Setting
1 KOhm Pull-down Resistor
  1 KOhm Pull-down Resistor Jumper Setting

  120 Ohm Line-to-Line Termination


ELECTRICAL SPECIFICATIONS
Supply Voltage

+5 VDC

MECHANICAL SPECIFICATIONS
Dimensions 1.70” (43.2 mm) W, 2.20” L, (55.9 mm)
Mounting Pattern Four Places, Diameter 0.125” (3.0 mm)
Pinout - Input
PIN Description
T(+) Encoder A+ Channel Input
T(-) Encoder A- Channel Input
R(+) Encoder B+ Channel Input
R(-) Encoder B- Channel Input
Pinout - Output
PIN Description
+VCC +5 VDC power input
DIR Do Not Use
TX Encoder A Channel Output
RX Encoder B Channel Output
GND Ground Connection for Power Supply
