Two-axis Positioning System
GXY-280-280-02-01



Servo Controlled Two-axis Positioning Gantry System





Two-axis Servo Motor Driven Positioning Gantry Stage

  • Zero Backlash
  • Long System Life
  • High Speed Positioning
  • Compact Package
  • Integrated Position Feedback Sensor
  • High Force Generation
  • High Accuracy
  • Cog Free
  • High Repeatability
  • 1 Micron Resolution

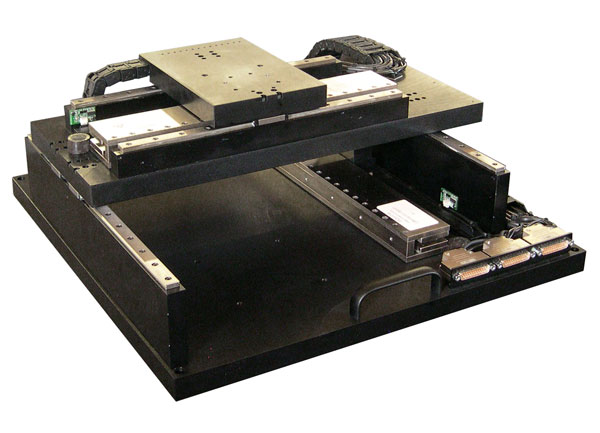

GXY-280-280-02-01
Enlarge
Drawing quick view
Datasheet in PDF Drawing in PDF


DESCTRIPTION:

Three Phase Brushless Driven Stage with Quadrature Position Sensor with Limit and Home Switches

  • Range of Motion: 11” (280 mm) by 11” (280 mm)
  • Positioning Resolution: 0.001" (25.4 microns)
  • Continuous Force: 9.3 lb (41.4 N)
  • Intermittent Force: 29.4 lb (130.8 N)
  • X-axis Weight: 33.8 lb (15.3 Kg)
  • Y-axis Weight: 4.7 lb (2.1 Kg)
  • Y-axis Weight with LMA-051-089-01: 14.6 lb (6.6 Kg)
  • Configurable as XY, XYZ, XYZ-Theta

GENERAL SPECIFICATIONS:
  • Intermittent Force @ 10% Duty Cycle: 29.4 lb (130.8 N)
  • Continuous Force @ 25 °C: 9.3 lb (41.4 N)
  • Continuous Force@ Tmax: 8.0 lb (35.6 N)
  • Continuous Power: 38 W
  • Motor Constant 1.5 lb/ W0.5

ELECTRICAL SPECIFICATIONS:
  • Peak Current @ 10% Duty Cycle: 11.6 A
  • Continuous Current @ Tmax 3.2 A
  • Force Constant: 2.5 lb/A (11.1 N/A)
  • Back EMF: 0.3 V/in/s (11.1 V/m/s)
  • Resistance @ 25 °C 2.8 Ohm
  • Inductance @ 1 KHz 1.0 mH
