Hollow Core Linear Voice Coil Motors

HVCM-019-032-003-02




Housing Outside Diameter, 0.750 inch, 19.1 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-019-032-003-02 0.875 inch 7.4 oz 23.3 oz 1.250 inch 0.125 inch
Datasheet in PDF 22.2 mm 2.1 N 6.5 N 31.8 mm 3.2 mm

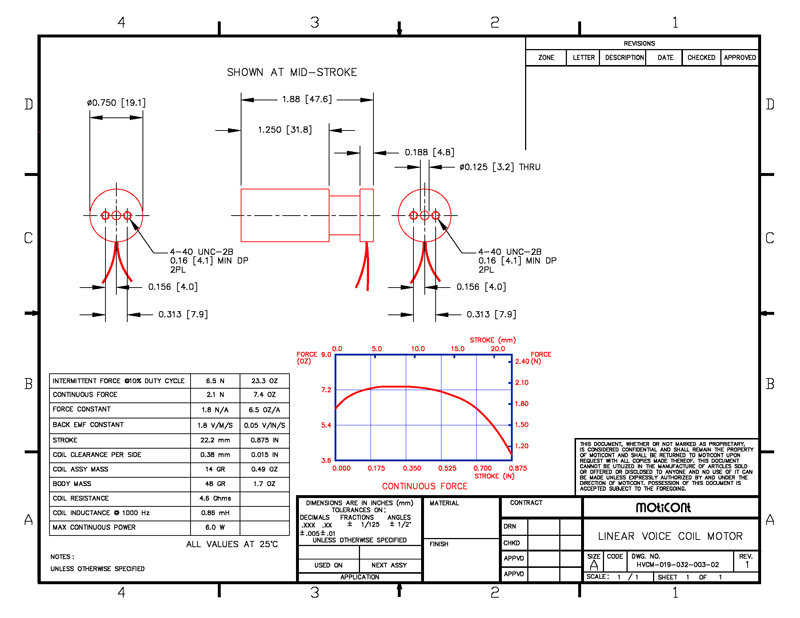

Drawing quick view
