Hollow Core Linear Voice Coil Motors

HVCM-051-025-019-01




Housing Outside Diameter, 2.000 inch, 50.8 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-025-019-01 0.50 inch 4.8 lb 15.15 lb 1.00 inch 0.750 inch
Datasheet in PDF 12.7 mm 21.3 N 67.4 N 25.4 mm 19.05 mm

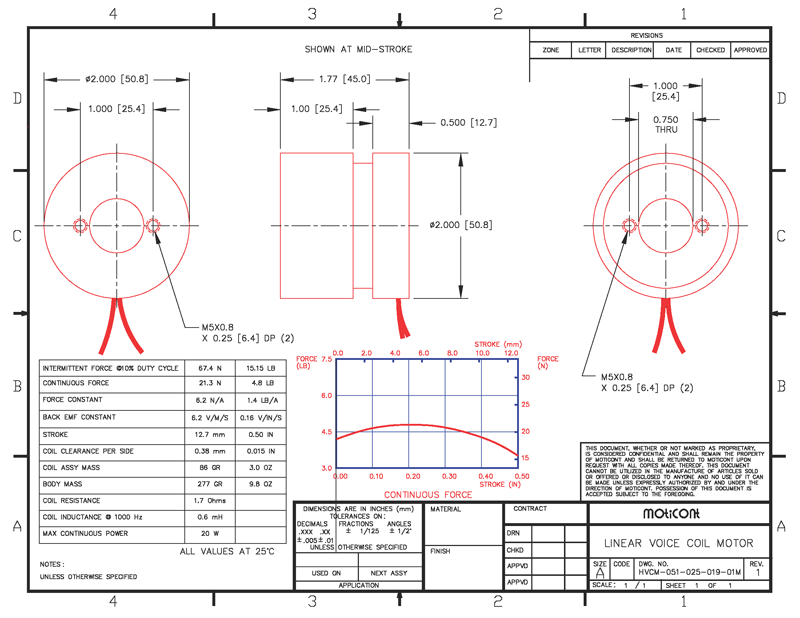

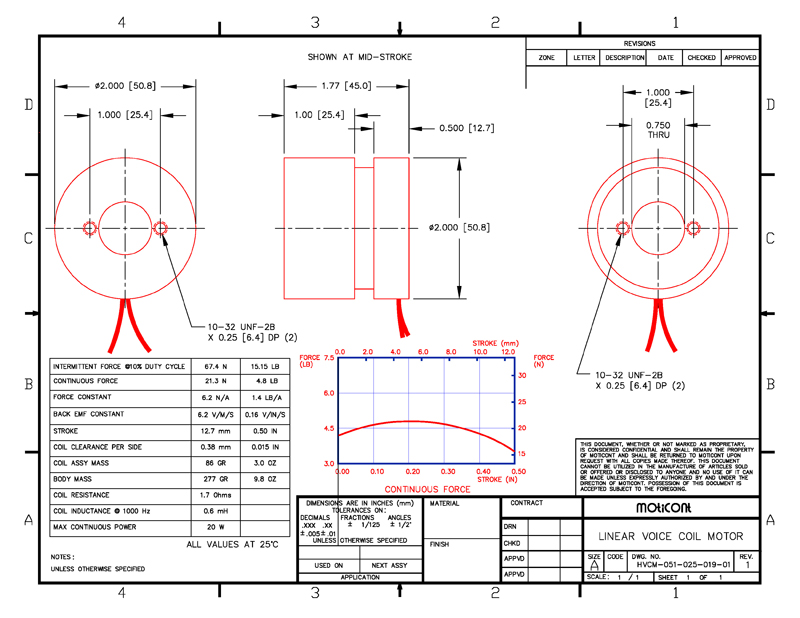

Drawing quick view
