Hollow Core Linear Voice Coil Motors

HVCM-051-032-019-01




Housing Outside Diameter, 2.000 inch, 50.8 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-032-019-01 0.75 inch 4.9 lb 15.7 lb 1.25 inch 0.75 inch
Datasheet in PDF 19.1 mm 22.0 N 69.6 N 31.8 mm 19.1 mm

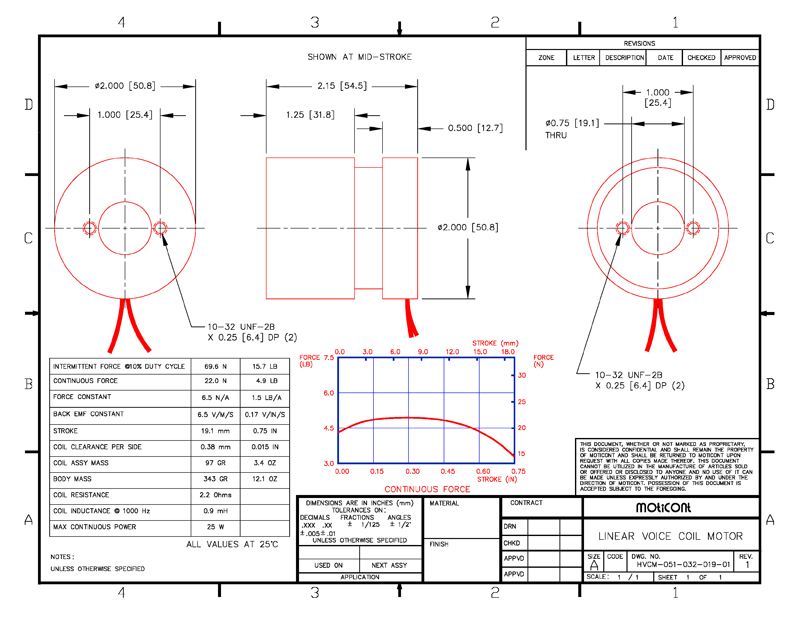

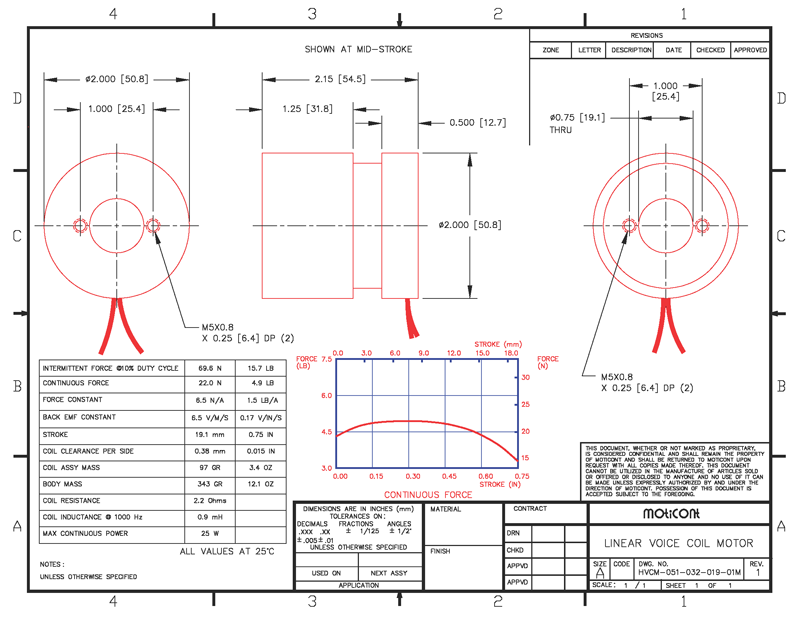

Drawing quick view
