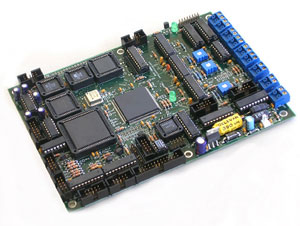

Specifications in PDF This card is an easy-to-use, plug-and-play and cost effective solution for four-xis motion control applications. It may be used as a stand-alone unit or may be commanded by an external device. This series supports up to 4 axes of motion, 16 TTL / CMOS compatible inputs, 16 TTL / CMOS compatible outputs, 3 analog inputs, and up to five optical encoder inputs. The command port is provided for stand-alone operation. The powerful programming instructions with more than 120 commands include motion control, system configuration, data flow, program flow commands, 32-bit logical and mathematical operations, and other miscellaneous instructions. These cards can also be operated using an analog joystick or a trackball with quadrature outputs. The speed of the motor is proportional to the tilt angle of the joystick or the rotational speed of the trackball. The joystick has three speed selection keys; fast, medium and slow speed. Features Plug-and-Play Quick and Easy to Install Very Compact and Easy to Use Low Power Consumption Easy Programming Language, No Compiler or Assembler Required Programmable, Teachable or Manual Control Different Modes of Operation: Stand-alone, No PC Required to Operate Host Controlled, PLC, C/C++, Visual Basic, LabVIEW™ Joystick / Trackball Controlled Quadrature Encoder Feedback Built-in Self Test Software Easy System Setup and Evaluation Menu Driven Free Software Included Quantity adjustment on next page
|
