Linear Motor Actuator

LMA 051-051-01






Linear Motor Actuator
  • Range of Motion: 0.7” (17.8 mm) Max
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Quadrature Optical Encoder with Optional Differential Outputs
  • Built-in Home Switch



LMA-051-051-01-26

Enlarge

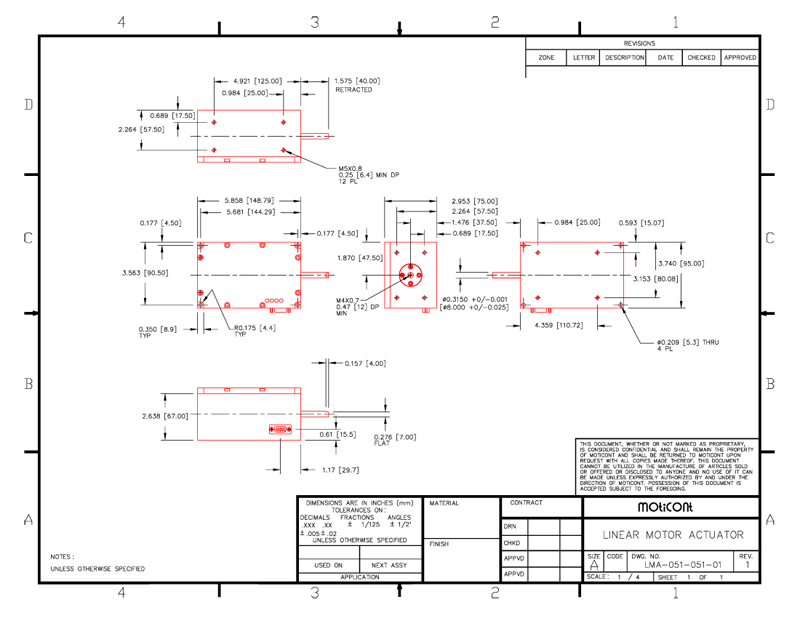

Datasheet in PDF Drawing quick view


LMA Pin Assignment and Description

Signal Name

DB9 Male

+5 VDC Input

1

Home - Active High - Normally Low

2

Channel A of encoder

3

Channel B of encoder

4

Ground, +5 VDC Return

5

Inner Limit - Active High - Normally Low

6

Outer Limit - Active High - Normally Low

7

Red Lead of the Motor

8

Black Lead of the Motor

9
