Linear Voice Coil Motor

LVCM-016-013-01



Housing Outside Diameter, 0.625 inch, 15.9 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-016-013-01 0.25 inch 6.3 oz 20.0 oz 0.500 inch
Datasheet in PDF 6.4 mm 1.8 N 5.6 N 12.7 mm

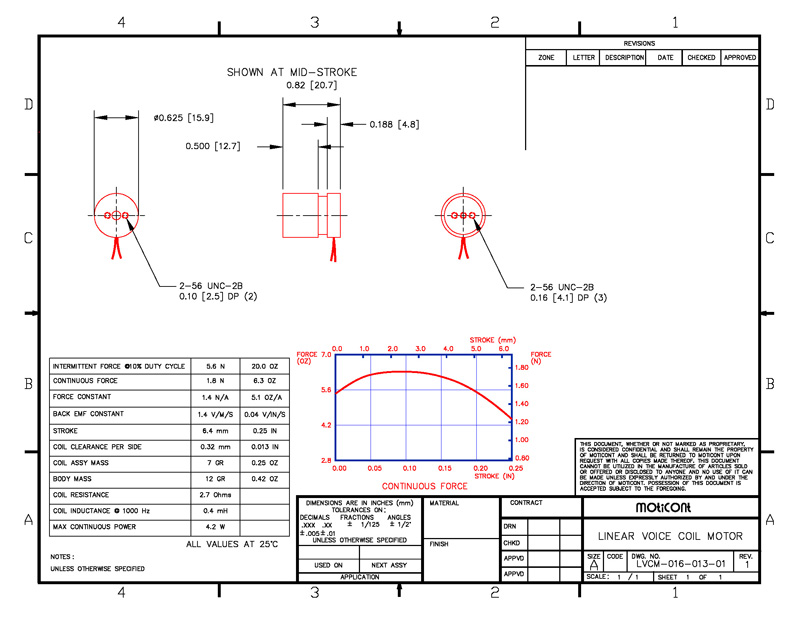

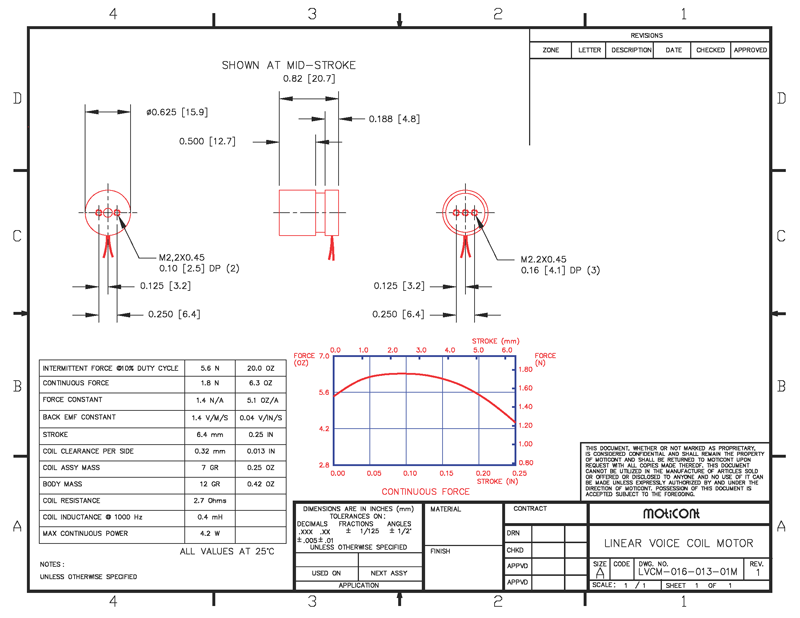

Drawing quick view
