Linear Voice Coil Motor

LVCM-044-032-02



Housing Outside Diameter, 1.750 inch, 44.4 mm
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-044-032-02 0.50 inch 5.0 lb 15.8 lb 1.25 inch
Datasheet in PDF 12.7 mm 22.2 N 70.4 N 38.1 mm

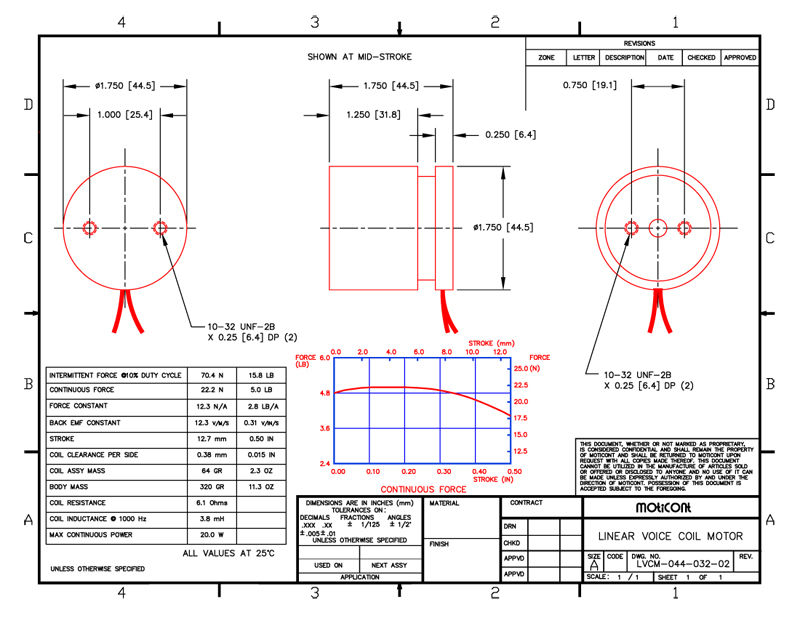

Drawing quick view
