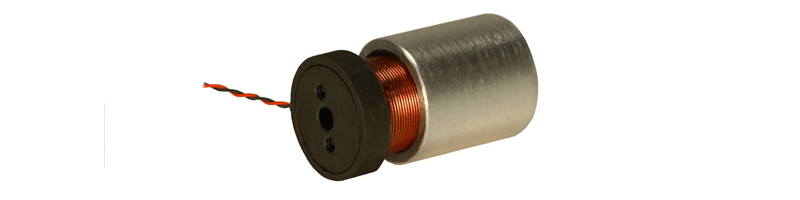

Linear Voice Coil Motor

LVCM-044-051-02



Housing Outside Diameter, 1.750 inch, 44.4 mm
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-044-051-02 1.25 inch 5.0 lb 15.8 lb 2.00 inch
Datasheet in PDF 31.8 mm 22.3 N 70.4 N 50.8 mm

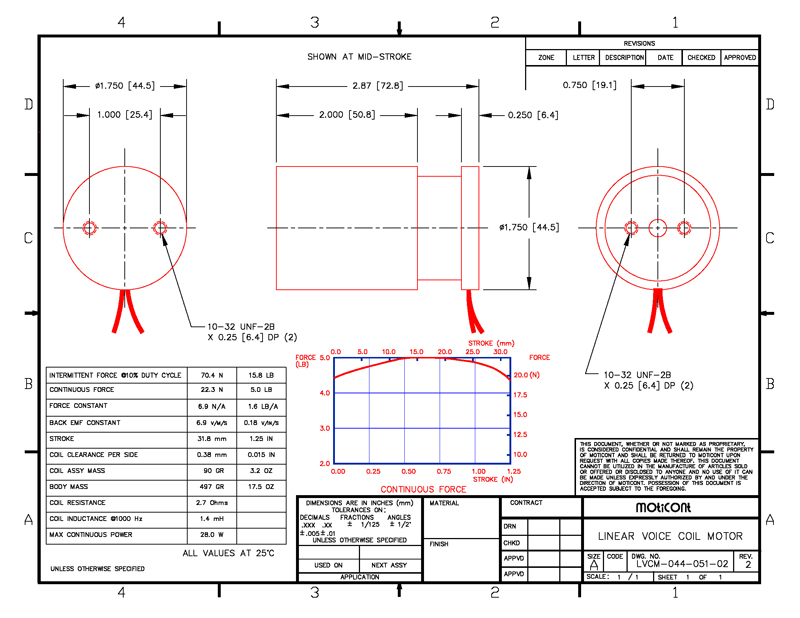

Drawing quick view
