Linear Voice Coil Motor

LVCM-051-089-02



Housing Outside Diameter, 2.000 inch, 50.8 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-051-089-02 1.00 inch 14.9 lb 47.2 lb 3.50 inch
Datasheet in PDF 25.4 mm 66.4 N 210 N 88.9 mm

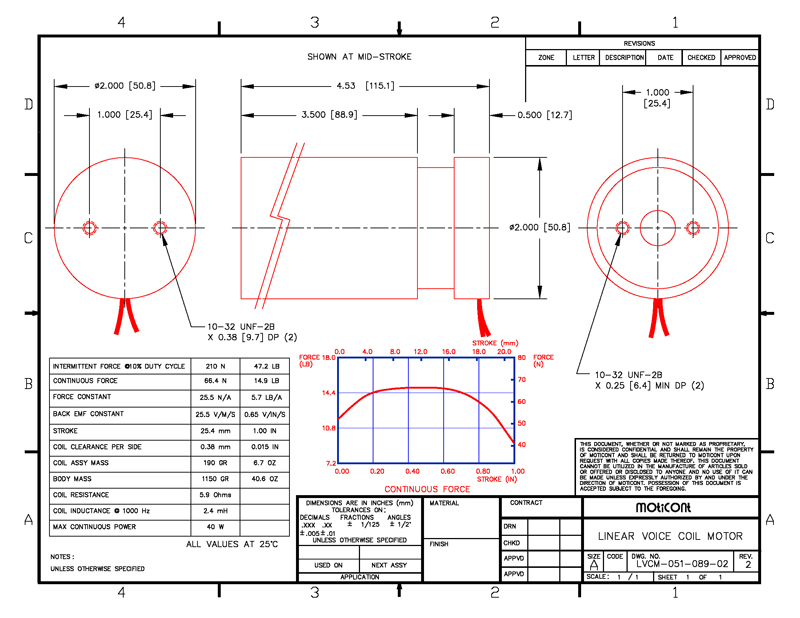

Drawing quick view
