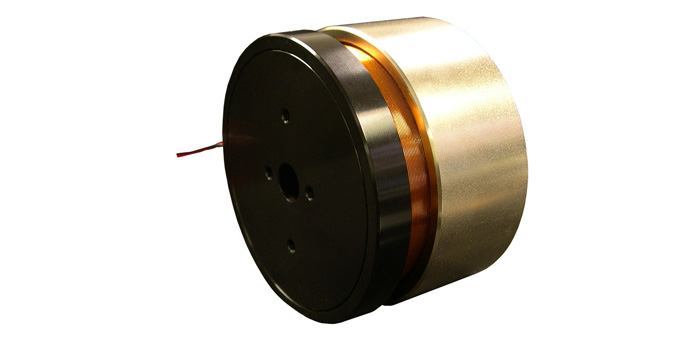

Linear Voice Coil Motor

LVCM-095-038-01



Housing Outside Diameter, 3.750 inch, 95.3 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-095-038-01 0.50 inch 23.1 lb 73.1 lb 1.50 inch
Datasheet in PDF 12.7 mm 102.7 N 324.4 N 28.6 mm

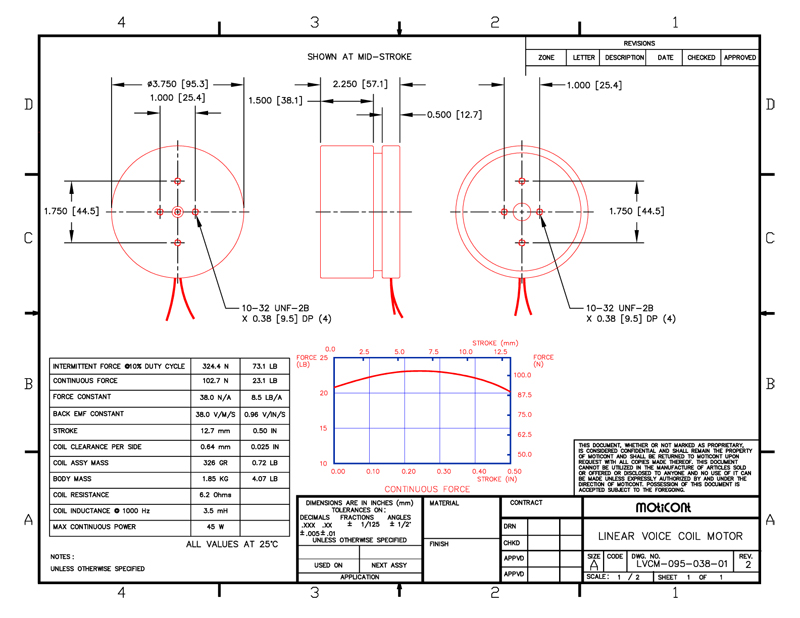

Drawing quick view
