Voice Coil Driven Stage
VCDS-038-038-01-F1-30



Comparison Table




Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch =

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 3.0 lb (13.4 N)
  • Intermittent Force:  9.5 lb (42.5 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-038-038-01-F1-30
Enlarge
Datasheet in PDF

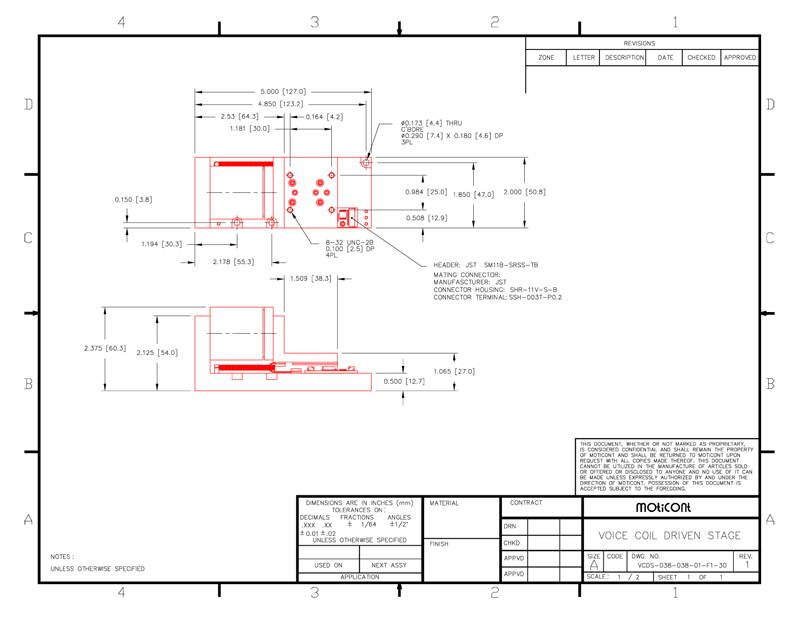

Drawing quick view


STAGE SPECIFICATIONS

Intermittent Force @ 10% Duty Cycle

42.5 N

9.5

lb
Continuous Force 13.4 N

3.0

lb

Force Constant

10.1 N/A

2.3

lb/A
BACK EMF Constant 10.1 V/M/S

0.26

V/in/S

Stroke

24.6 mm

0.97

in
Moving Mass 136 gr

4.8

oz

Total Mass

709 gr

25.0

oz

Coil Resistance

10.1 Ohm

Coil Inductance at 1000 Hz

3.7 mH

Continuous Power

18 W

Pin Assignment

Pin

Description

1

+5 VDC Power

2

A- Channel of Quadrature Encoder

3

B+ Channel of Quadrature Encoder

4

A+ Channel of Quadrature Encoder

5

Return for +5 VDC Power

6

Reference Signal, Active High

7

B- Channel of Quadrature Encoder

8

Motor Minus

9

Motor Plus

 Customized solutions can be provided upon request.
