Direct Drive Linear Motors with Built-in Encoder

SDLM-025-095-01-01

Housing Outside Diameter, 1.000 inch, 25.4 mm

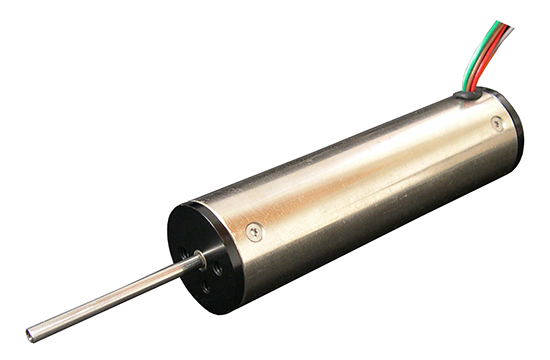

Direct Drive Linear Motor SDLM-025-095-01-01
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
SDLM-025-095-01-01 1.000 inch 21.0 oz 66.4 oz 3.750 inch
Datasheet in PDF 25.4 mm 5.8 N 18.5 N 95.3 mm

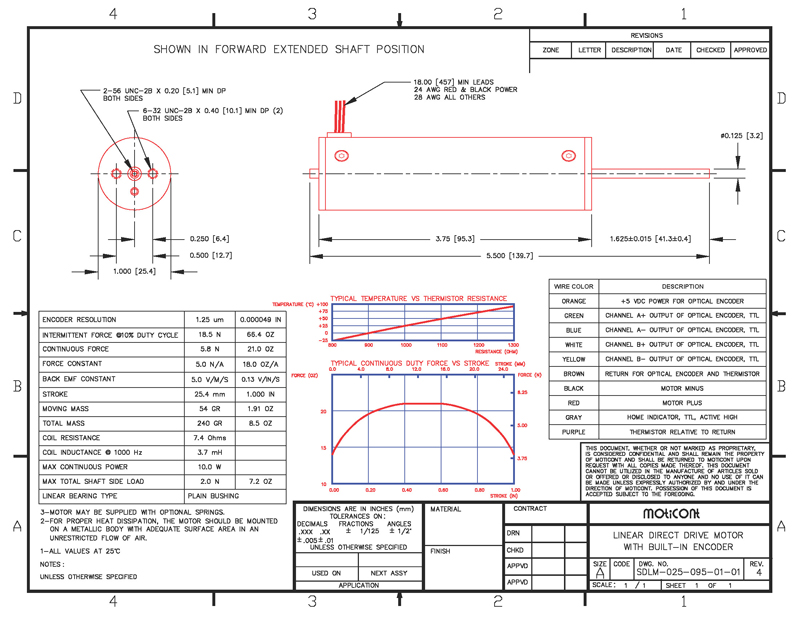

Drawing quick view  Resolution: 1.25 microns
