Linear Motor with Internal Shaft & Bearing

GVCM-025-038-02




Housing Outside Diameter, 1.000 inch, 25.4 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-025-038-02 1.000 inch 1.0 lb 3.2 lb 1.500 inch
Datasheet in PDF 25.4 mm 4.6 N 14.4 N 38.1 mm

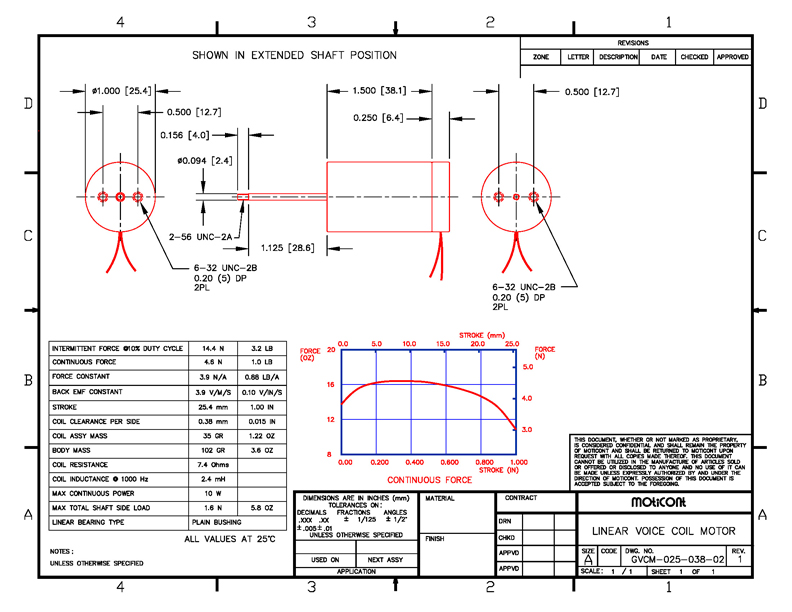

Drawing quick view
