Four-axis Positioning Systems




  Our four-axis positioning systems are offered utilizing any of our two-axis systems like GXY-280-280-01 or GXY-280-280-02 along with our voice coil motor driven LMA series or lead screw driven LA Series linear and/or variety of rotary actuators. The Multi-Axis Positioning System is designed to allow direct coupling between the load and the drive motors. This feature eliminates backlash, allows for fast acceleration / deceleration, high speed operation while increasing the reliability.

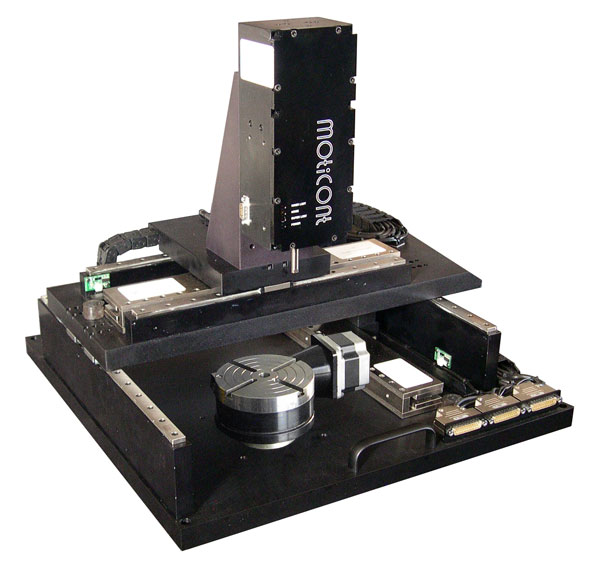

Three-axis plus Rotary-axis System
  • Zero Backlash
  • Long System Life
  • Continuous Force in X and Y Directions: up to 9.3lbs (41.4 N)
  • Peak Force: Up to 15 lbs (66 N)
  • Total Travel (typical): 11 inches (25 cm) by 11 inches (25 cm)
  • Working Area (typical): 8 inches (20 cm) by 8 inches (20 cm)
  • Optional Incremental Encoder for Closed Loop Operation
  • High Speed and Acceleration
  • High Accuracy
  • Cog Free
  • High Repeatability
  • Closed Loop Three Phase Brushless Motor Driven
  • Available with Control Electronics
GXY-280-280-01
Enlarge
Datasheet in PDF
