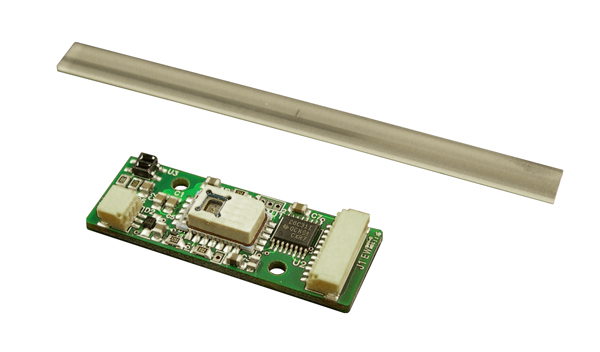

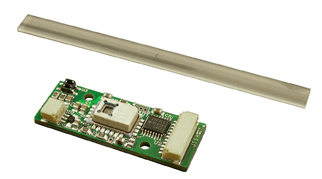

One-micron Optical Encoder Module
- Small Size, 1.496" (38.0 mm) by 0.551" (14.0 mm)
- Low Profile, 0.190" (4.8 mm)
- Low Power
- Resolution, 0.00004", 1 micron
- TTL Reference Point Output
- TTL Differential Quadrature Outputs
- Single +5 VDC Supply
- Up to 14 m/s (550 in/s)
|
|
OEM-001U-01 Optical Encoder
LS-001U Linear Scale |
Enlarge
|
|
|
|
 |
|

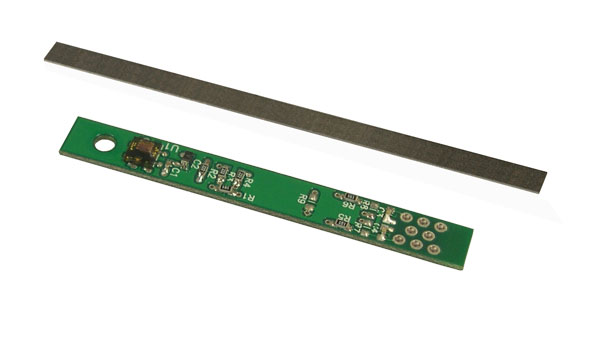

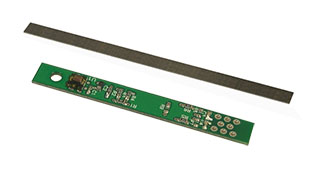

5.2 micron Optical Encoder Module
- Small Size, 1.924" (48.8 mm) by 0.236" (5.99
mm)
- Low Profile, 0.07" (1.78 mm)
- Low Power
- Resolution, 0.0002", 5.2 micron
- TTL Quadrature Outputs
- Single +5 VDC Supply
|
OEM-00520U-01
|
Enlarge |
|
|
|
 |
|

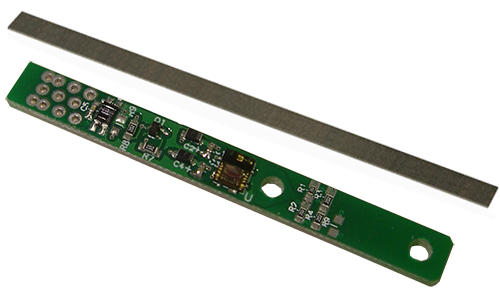

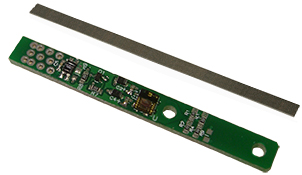

1.25-micron Optical Encoder Module
- Small Size, 2.027" (51.5 mm) by 0.236" (5.99 mm)
- Low Profile, 0.073" (0.8 mm)
- Low Power
- High Resolution, 0.000049", 1.25 Micron
- TTL Quadrature Outputs
- Single +5 VDC Supply
|
OEM-00125U-01
|
Enlarge |
|
|
 |
|

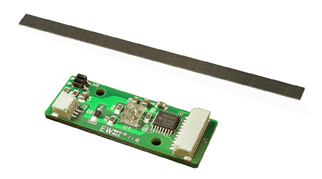

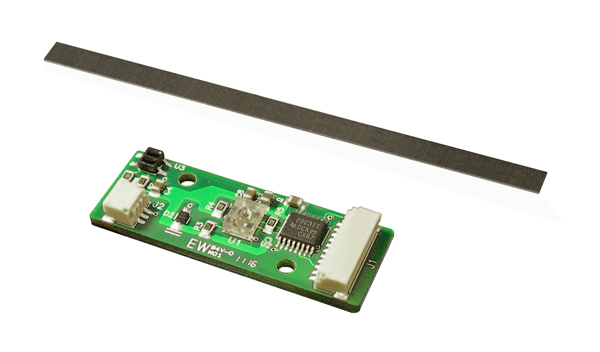

Thirty-micron Optical Encoder Module
- Small Size, 1.496" (38.0 mm) by 0.551" (14.0 mm)
- Low Profile, 0.190" (4.8 mm)
- Low Power
- Resolution, 0.0012", 30 micron
- TTL Reference Point Output
- TTL Differential Quadrature Outputs
- Single +5 VDC Supply
|
OEM-030U-01
LS-030U Linear Scale |
Enlarge
|
|
|
|
 |
|

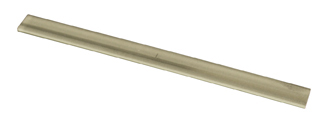

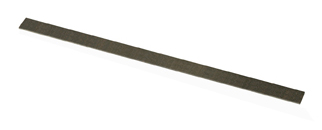

Linear Scale
- 1 um (0.0004") Quadrature Resolution
- Low Cost
- Low Power
|
|
LS-001U |
Enlarge
|
|
|
|
 |
|

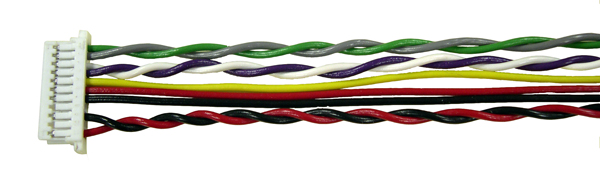

Optical Encoder Module Cable
- Used with One-micron Optical Encoder Module
- Used with Thirty-micron Optical Encoder Module
|
| CBL-01 |
Enlarge
|
|
|
 |
|
Optical Encoder Module Cable
- Cable, 12 inch (300 mm)
- Used with 510 Series
- Used with 600 Series
- Used with Thirty-micron Optical Encoder Module
|
| CBL-02 |
Enlarge |
|
|
|
|
|
|
Cable for Encoders and Stages
- Used with Optical Encoder Module OEM-001U-01 or OEM-030U-01
- Used as an adapter to convert the existing connector on the board to a female DB9 connector
|
CBL-03
|
Enlarge |
|
|
|
|
|
|

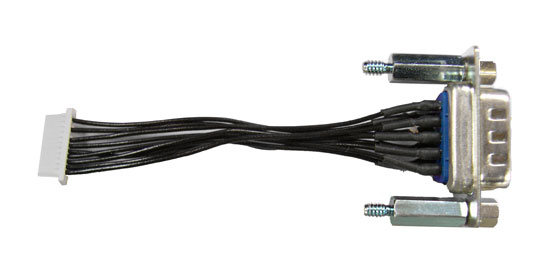

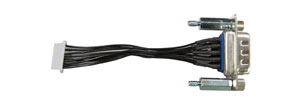

Optical Encoder Module Cable
- Used with Optical Encoder Module OEM-001U-01 or OEM-030U-01
- Used as an adapter to convert the existing connector on the board to a female DB9 connector
|
CBL-04
|
Enlarge |
|
|
|
|
|
|
Optical Encoder Module Cable
- The CBL-05 is used to connect the motor driven positioning gantry stages to the 100 Series of Motion Controllers.
|
| CBL-05 |
Enlarge |
|
|
|
|
|
|
Optical Encoder Module Cable
- Used with Thirteen-micron Optical Encoder Module
- Used with Twenty six-micron Optical Encoder Module
|
| CBL-06 |
Enlarge |
|
|
|
|
|
|
CBL-07
- The CBL-07 is used to connect the VCDS series to 600 series and 710 series
|
| CBL-07 |
Enlarge |
|
|
|
|
|
|
CBL-08
- The CBL-08 is used to connect the 100 and 150 Series Controllers to motors
|
| CBL-08 |
Enlarge |
|
|
|
|
|
 |
|
CBL-09
- Cable, 12 inch (30 cm)
- Used with 510 Series
- This cable is used to interface the VCDS series stages with
servo controller/driver
|
CBL-09
|
Enlarge |
|
