5.2 micron Optical Encoder Module

OEM-00520U-01




5.2 micron Optical Encoder Module and Linear Scale

  • Small Size, 1.924" (48.8 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.07" (1.78 mm)
  • Low Power
  • High Resolution, 0.0002", 5.2 micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
OEM-00520U-01
Datasheet in PDF

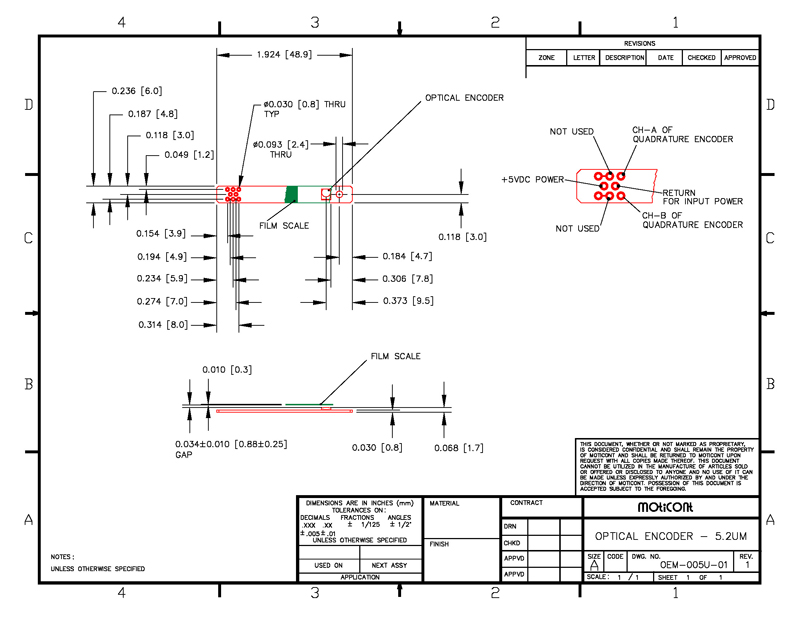

Drawing quick view Enlarge


Linear scales used with OEM-00520U-01



Linear Scale

  • 5.2 um (0.0002") Quadrature Resolution
  • Low Cost
  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request
    		•
    LS-00520U-01

    Enlarge
