1.25-micron Optical Encoder Module

OEM-00125U-01





1.25-micron Optical Encoder Module and Linear Scale

  • Small Size, 2.027" (51.5 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.073" (0.8 mm)
  • Low Power
  • High Resolution, 0.000049", 1.25 Micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
OEM-00125U-01
Datasheet in PDF

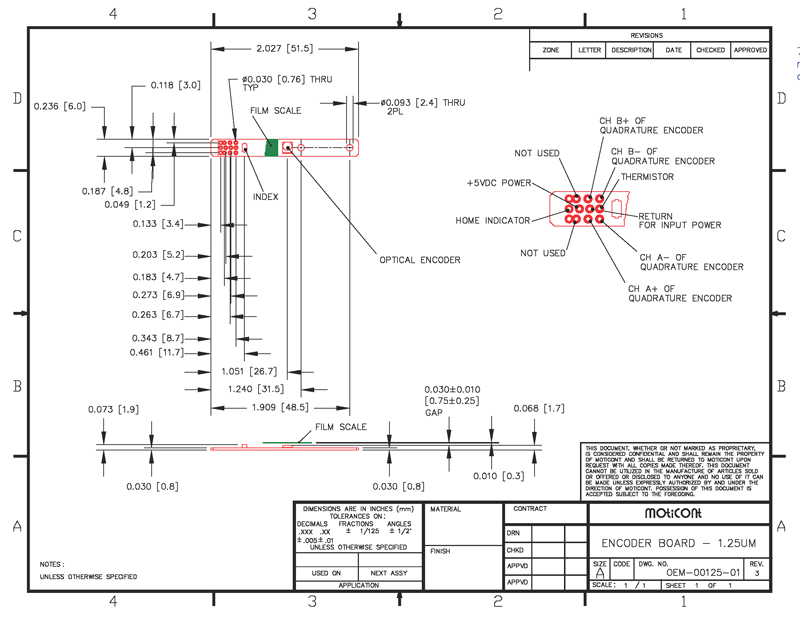

Drawing quick view Enlarge


Linear scales used with OEM-00125U-01



Linear Scale

  • 1.25 um (0.000049") Quadrature Resolution
  • Low Cost

  • LS-00125U-01

    Enlarge
