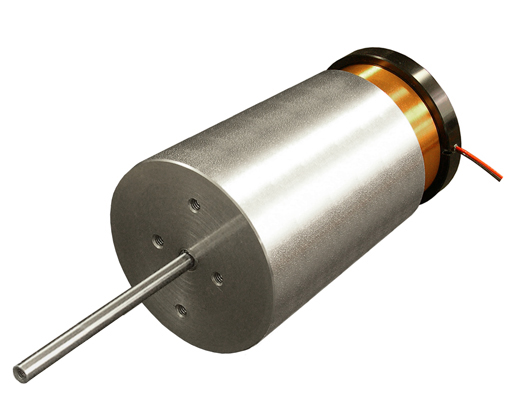

Linear Motor with Internal Shaft & Bearing, GVCM-070-089-01S06

Housing Outside Diameter, 2.750 inch, 69.9 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-070-089-01S06	2.50	inch	14.1	lb	44.6	lb	3.50	inch
Datasheet in PDF	63.5	mm	62.8	N	198.3	N	88.9	mm

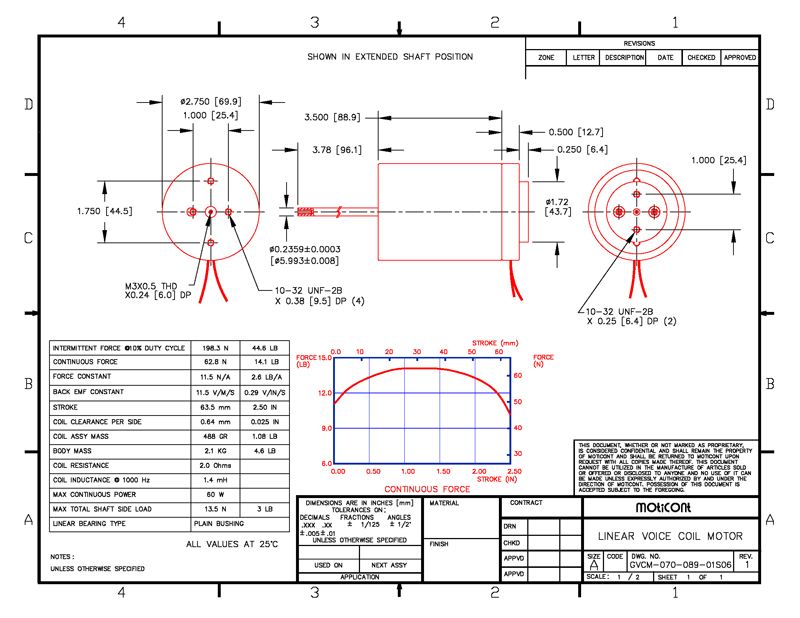

Drawing quick view
