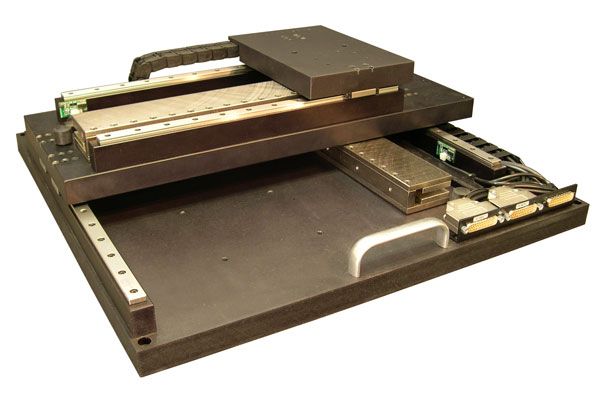

Two-axis Positioning System
GXY-280-280-01-01

Three Phase Brushless Driven Stage with Quadrature Position Sensor with Limit and Home Switches

• Range of Motion: 11” (280 mm) by 11” (280 mm)
• Positioning Resolution: 0.001" (25.4 microns)
• Continuous Force: 9.3 lb (41.4 N)
• Intermittent Force: 29.4 lb (130.8 N)
• X-axis Weight: 33.8 lb (15.3 Kg)
• Y-axis Weight: 4.7 lb (2.1 Kg)
• Y-axis Weight with LMA-051-089-01: 14.6 lb (6.6 Kg)
• Configurable as XY, XYZ, XYZ-Theta

• Intermittent Force @ 10% Duty Cycle: 29.4 lb (130.8 N)
• Continuous Force @ 25 °C: 9.3 lb (41.4 N)
• Continuous Force@ Tmax: 8.0 lb (35.6 N)
• Continuous Power: 38 W
• Motor Constant 1.5 lb/ W^0.5

• Peak Current @ 10% Duty Cycle: 11.6 A
• Continuous Current @ Tmax 3.2 A
• Force Constant: 2.5 lb/A (11.1 N/A)
• Back EMF: 0.3 V/in/s (11.1 V/m/s)
• Resistance @ 25 °C 2.8 Ohm
• Inductance @ 1 KHz 1.0 mH
