Hollow Core Voice Coil Driven Stages, HCDS-051-032-01 Series

Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 1 micron
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

    • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
HCDS-051-032-013-01-B1-01
 Enlarge


Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 1 micron
  • Continuous Force: 4.9 lb (22.0 N)
  • Intermittent Force:  15.7 lb (69.6 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
HCDS-051-032-019-01-B1-01 Enlarge


Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04

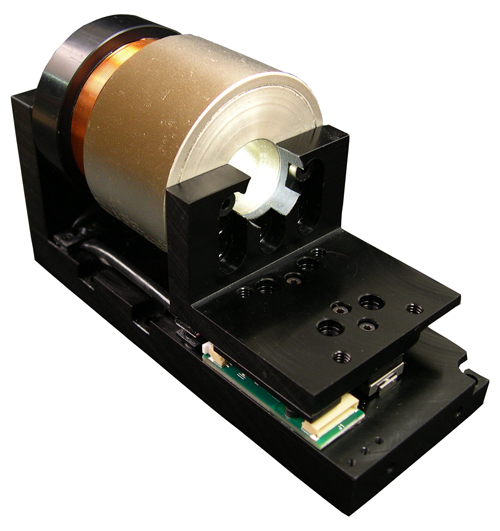

HCDS-051-032-013-01-B1-30 Enlarge


Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 4.9 lb (22.0 N)
  • Intermittent Force:  15.7 lb (69.6 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
HCDS-051-032-019-01-B1-30 Enlarge


Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 1 micron
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
HCDS-051-032-013-01-F1-01 Enlarge


Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 1 micron
  • Continuous Force: 4.9 lb (22.0 N)
  • Intermittent Force:  15.7 lb (69.6 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
HCDS-051-032-019-01-F1-01 Enlarge


Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
HCDS-051-032-013-01-F1-30 Enlarge


Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 4.9 lb (22.0 N)
  • Intermittent Force:  15.7 lb (69.6 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
HCDS-051-032-019-01-F1-30 Enlarge
