Hollow Linear Motor, HVCM-051-025-013-01

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length		Through Hole Dia.
HVCM-051-025-013-01	0.50	inch	5.3	lb	16.9	lb	1.00	inch	0.50	inch
Datasheet in PDF	12.7	mm	23.7	N	74.8	N	25.4	mm	12.7	mm

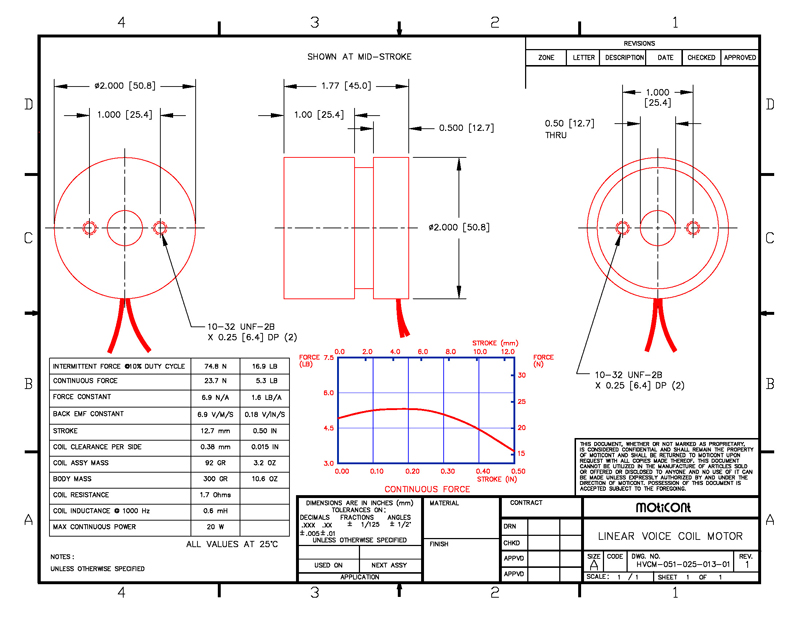

Drawing quick view
