Hollow Core Linear Voice Coil Motors

HVCM-051-032-013-01




Housing Outside Diameter, 2.000 inch, 50.8 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-032-013-01 0.75 inch 6.3 lb 20.0 lb 1.25 inch 0.50 inch
Datasheet in PDF 19.1 mm 28.2 N 89.9 N 31.8 mm 12.7 mm

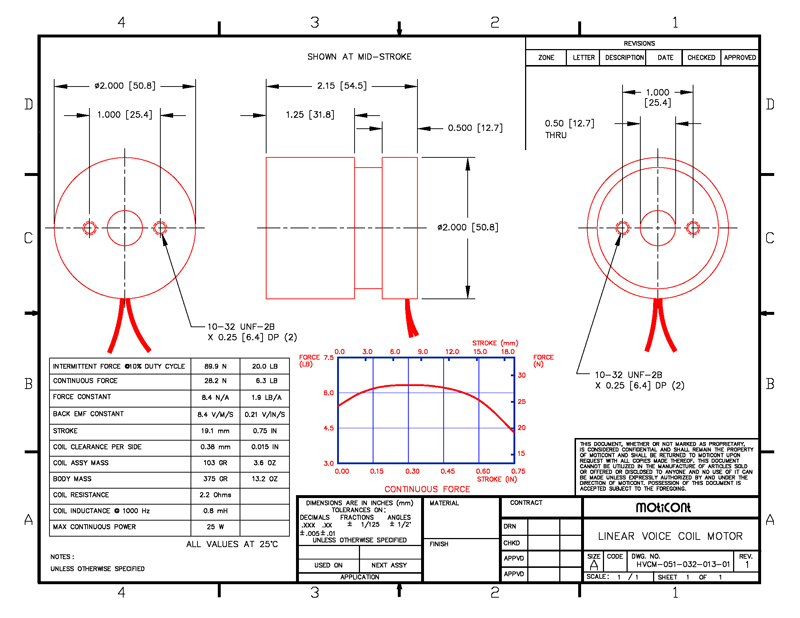

Drawing quick view
