Hollow Core Linear Voice Coil Motors

HVCM-051-051-019-01




Housing Outside Diameter, 2.000 inch, 50.8 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-051-051-019-01 0.75 inch 5.2 lb 16.4 lb 2.00 inch 0.75 inch
Datasheet in PDF 19.1 mm 23.1 N 72.9 N 50.8 mm 19.1 mm

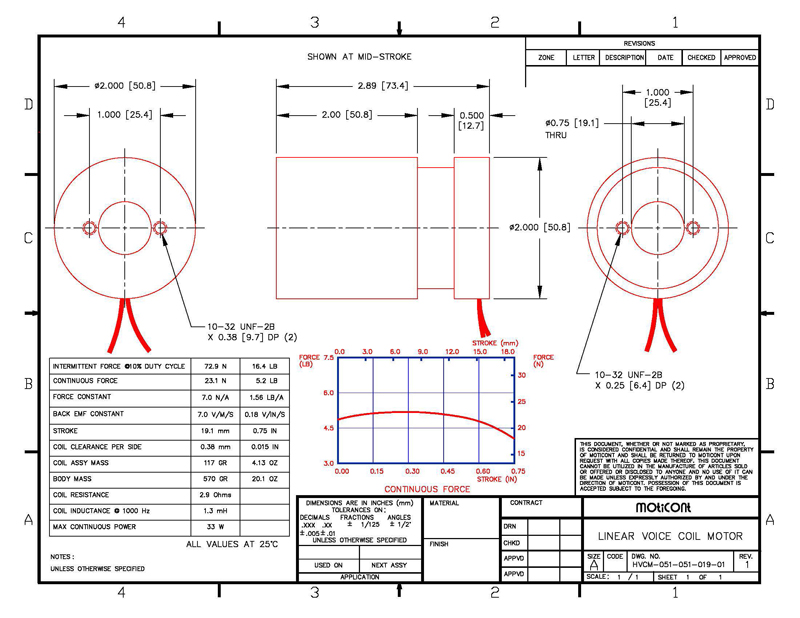

Drawing quick view
