Motorized Linear Stages, VCDS-051-089-01 Series

Comparison Table


Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 2.20” (55.9 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-051-089-01-01
Enlarge
Datasheet in PDF

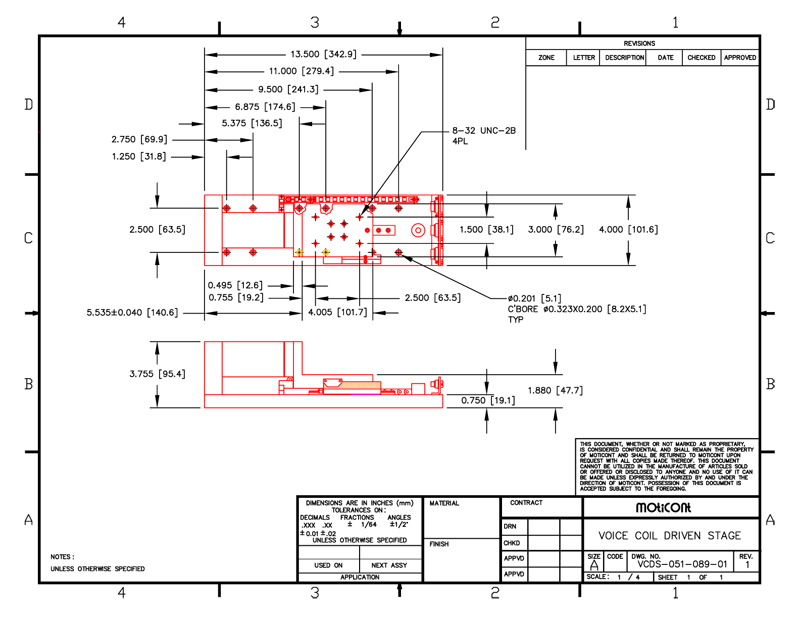

Drawing quick view



Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 2.20” (55.9 mm)
  • Positioning Resolution: 12.7 microns
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-051-089-01-13
Enlarge
Datasheet in PDF
Drawing quick view



Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 2.20” (55.9 mm)
  • Positioning Resolution: 25.4 microns
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-051-089-01-26
Enlarge
Datasheet in PDF
Drawing quick view



Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 2.20” (55.9 mm)
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
VCDS-051-089-01-30
Enlarge
Datasheet in PDF
Drawing quick view
