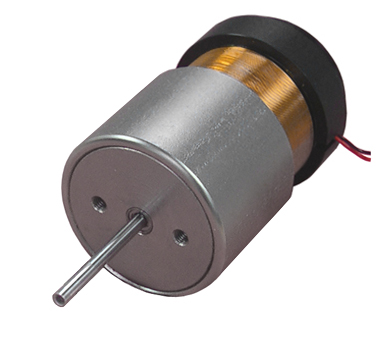

Linear Motor with Internal Shaft & Bearing, GVCM-051-032-01

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-051-032-01	0.75	inch	5.7	lb	18.1	lb	1.25	inch
Datasheet in PDF	19.1	mm	25.5	N	80.4	N	31.7	mm

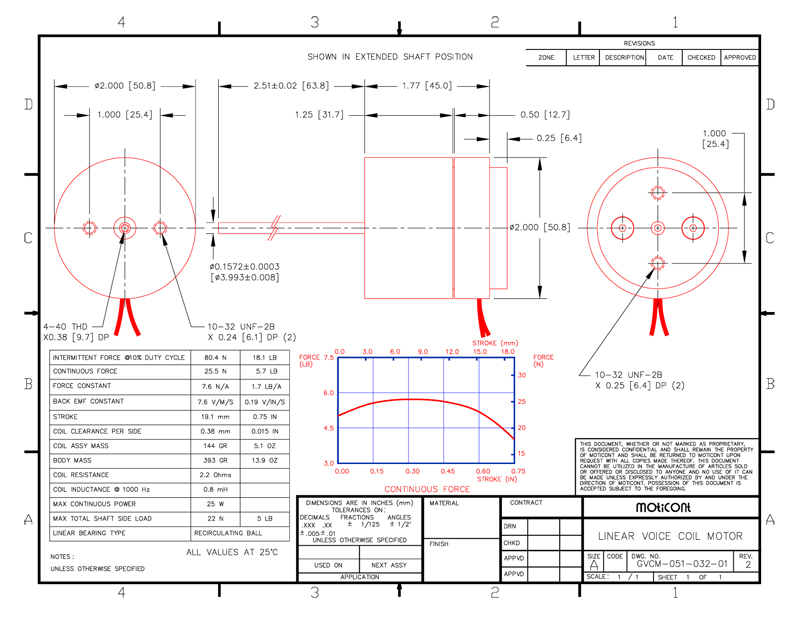

Drawing quick view
