Linear Motor with Internal Shaft & Bearing, GVCM-095-089-02

Housing Outside Diameter, 3.750 inch, 95.3 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-095-089-02S06	1.00	inch	58.0	lb	183.1	lb	3.50	inch
Datasheet in PDF	25.4	mm	257.7	N	814.5	N	88.9	mm

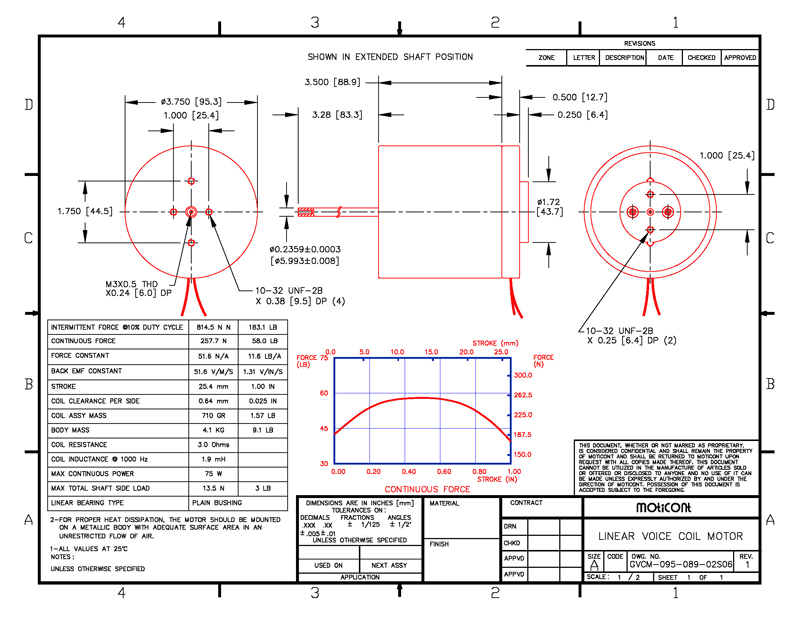

Drawing quick view
