Linear Three Phase Brushless Ironless Motor, LBIM-021-02

GENERAL SPECIFICATIONS
Intermittent Force @ 10% Duty Cycle	16.3	lb
Intermittent Force @ 10% Duty Cycle	72.4	N
Continuous Force @ 25 °C	5.2	lb
Continuous Force @ 25 °C	23.0	N
Continuous Force @ Tmax	3.8	lb
Continuous Force @ Tmax	17.1	N
Continuous Power	36	W
Motor Constant	0.87	lb/W^0.5
Motor Constant	3.83	N/W^0.5
Coil Assembly Length	6.35	in
Coil Assembly Length	161.3	mm

Part No.	Description

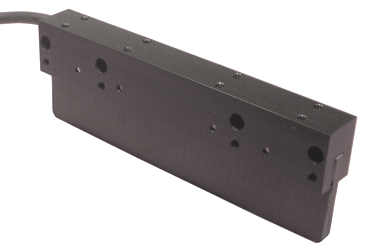

LBF-021-029-161-01	Forcer, Continuous: Force 5.2lb (23.0 N), Intermittent Force @ 10% Duty Cycle: 16.3 lb (72.4 N)

One or a combination of the following magnetic tracks is required.

Part No.	Description
LBM-021-038-121-01	Magnetic Track, Length: 4.75 in (121 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in (38.1 mm)

LBM-021-038-243-01	Magnetic Track, Length: 9.55 in (243 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in (38.1 mm)

LBM-021-038-365-01	Magnetic Track, Length: 14.35 in (365 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in (38.1 mm)

LBM-021-038-608-01	Magnetic Track, Length: 23.95 in (608 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in (38.1 mm)
