Linear Voice Coil Motor

LVCM-013-044-03



Housing Outside Diameter, 0.500 inch, 12.7 mm
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-013-044-03 0.60 inch 6.9 oz 21.7 oz 1.750 inch
Datasheet in PDF 15.2 mm 1.9 N 6.0 N 44.5 mm

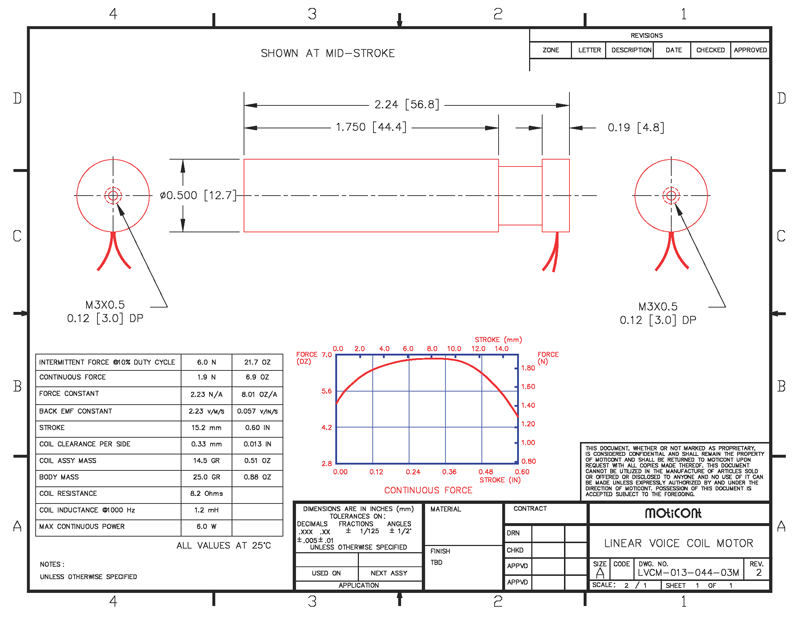

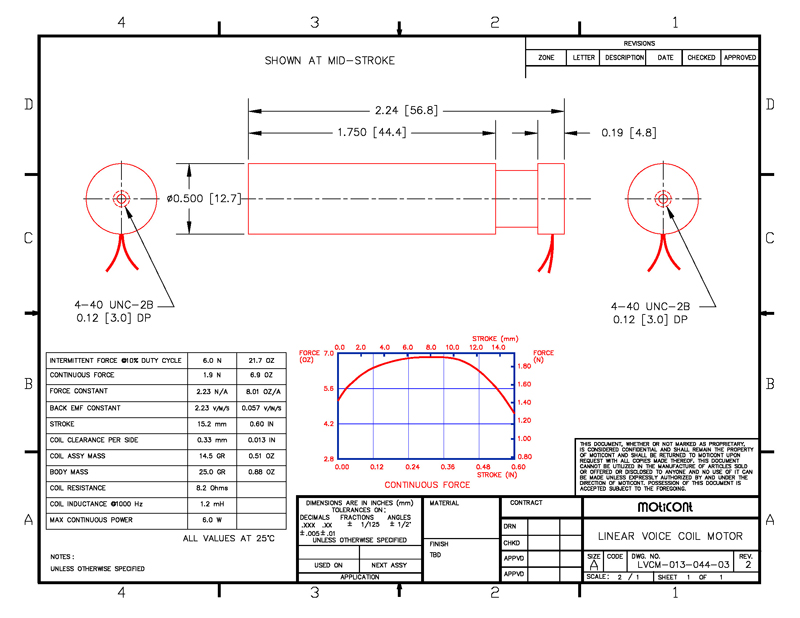

Drawing quick view
