Linear Motor, LVCM-013-044-02

Housing Outside Diameter, 0.625 inch, 15.9 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-016-019-01	0.50	inch	6.1	oz	19.3	oz	0.750	inch
Datasheet in PDF	12.7	mm	1.7	N	5.4	N	19.1	mm

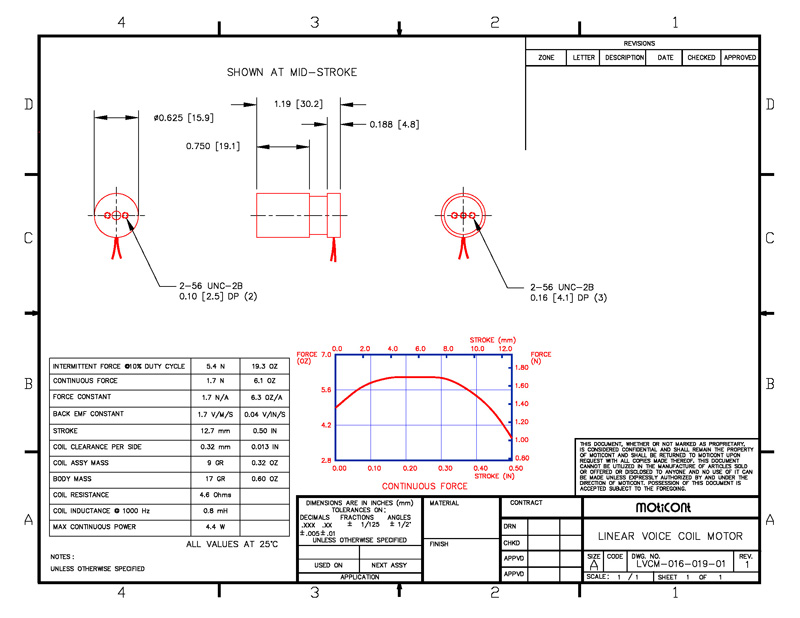

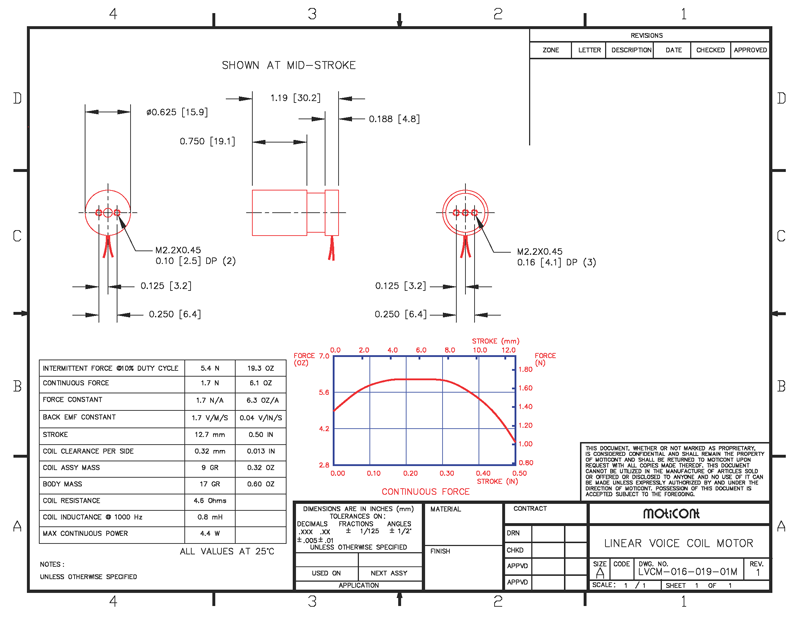

Drawing quick view
