Linear Voice Coil Motor

LVCM-051-064-01



Housing Outside Diameter, 2.000 inch, 50.8 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-051-064-01 1.25 inch 6.6 lb 20.9 lb 2.50 inch
Datasheet in PDF 31.8 mm 29.4 N 92.9 N 63.5 mm

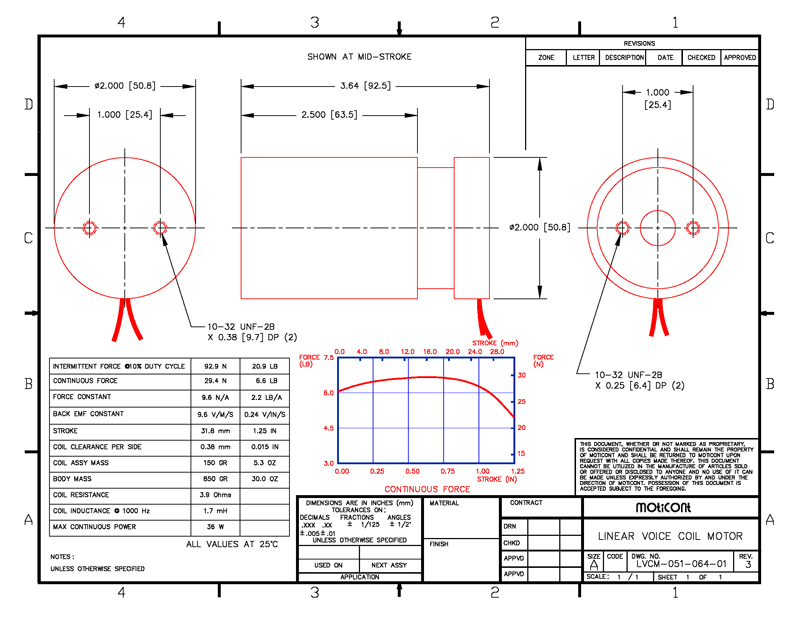

Drawing quick view
