Linear Voice Coil Motor

LVCM-095-064-01



Housing Outside Diameter, 3.750 inch, 95.3 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-095-064-01 1.50 inch 24.4 lb 77.1 lb 2.50 inch
Datasheet in PDF 38.2 mm 108.2 N 342.0 N 63.5 mm

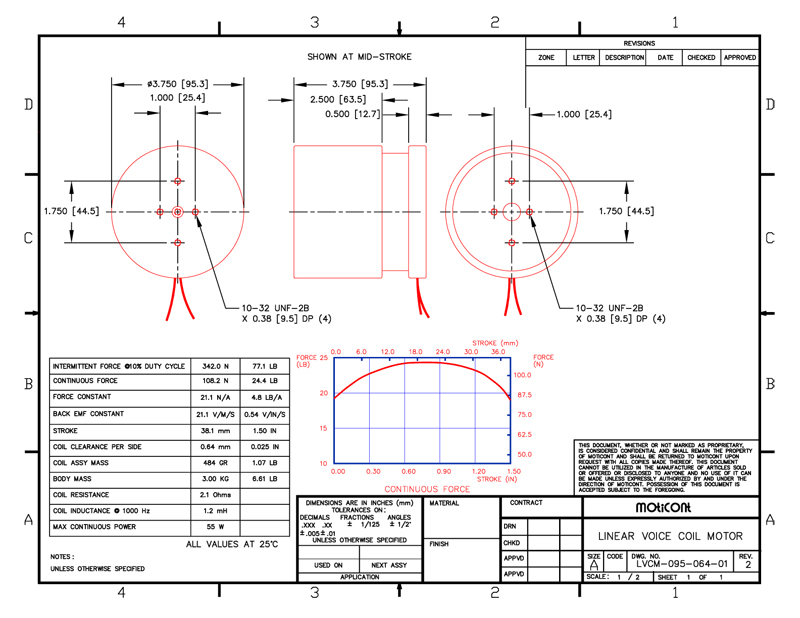

Drawing quick view
