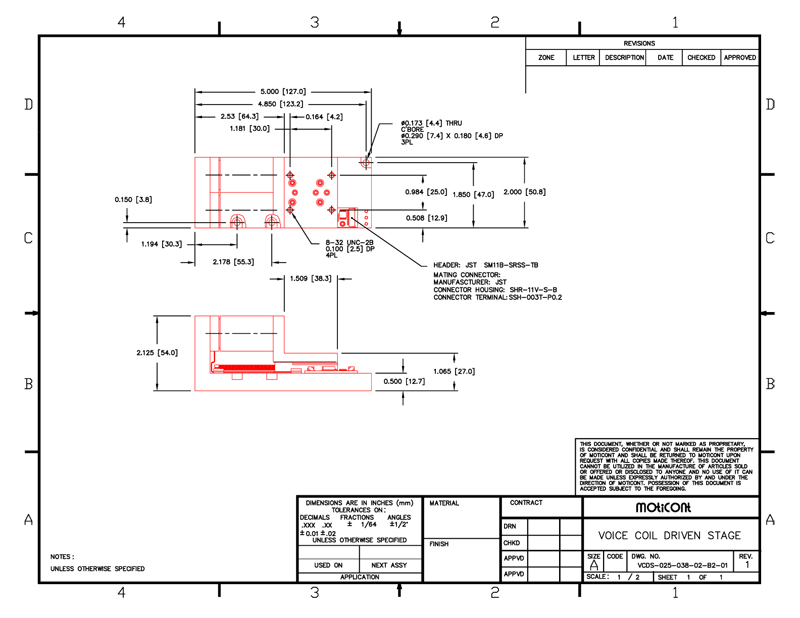

Voice Coil Driven Stage
VCDS-025-038-02-B2-01

Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04

VCDS-025-038-02-B2-01

STAGE SPECIFICATIONS
Intermittent Force @ 10% Duty Cycle	28.8	N	6.4	lb
Continuous Force	9.2	N	2.0	lb
Force Constant	3.9	N/A	0.88	lb/A
BACK EMF Constant	3.9	V/M/S	0.10	V/in/S
Stroke	24.6	mm	0.97	in
Moving Mass	301	gr	10.6	oz
Total Mass	673	gr	23.7	oz
Coil Resistance	3.7	Ohm
Coil Inductance at 1000 Hz	1.2	mH
Continuous Power	20	W

Pin Assignment

Pin	Description
1	+5 VDC Power
2	A- Channel of Quadrature Encoder
3	B+ Channel of Quadrature Encoder
4	A+ Channel of Quadrature Encoder
5	Return for +5 VDC Power
6	Reference Signal, Active High
7	B- Channel of Quadrature Encoder
8	Motor Minus
9	Motor Plus

Customized solutions can be provided upon request.
