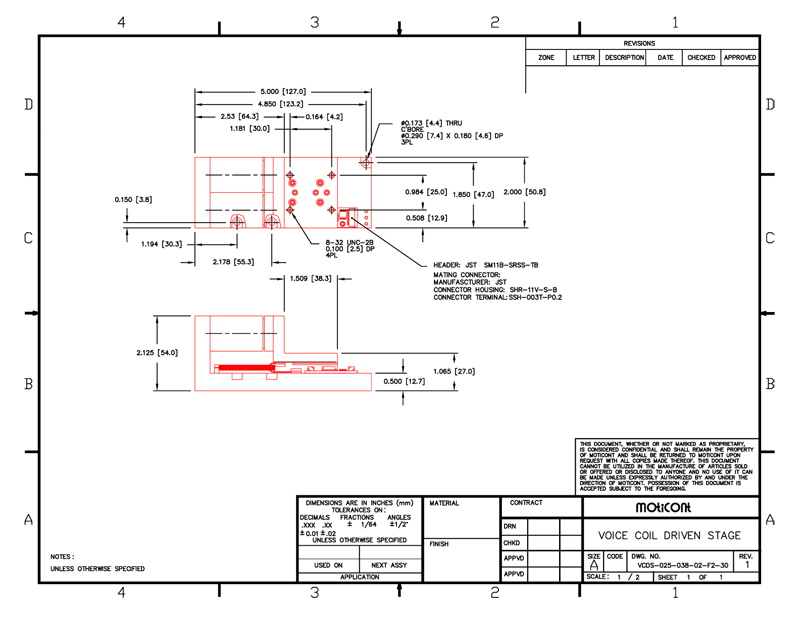

Voice Coil Driven Stage
VCDS-025-038-02-F2-30

Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04

VCDS-025-038-02-F2-30

STAGE SPECIFICATIONS
Intermittent Force @ 10% Duty Cycle	28.8	N	6.4	lb
Continuous Force	9.2	N	2.0	lb
Force Constant	3.9	N/A	0.88	lb/A
BACK EMF Constant	3.9	V/M/S	0.10	V/in/S
Stroke	24.6	mm	0.97	in
Moving Mass	150	gr	5.3	oz
TotalMass	651	gr	23.0	oz
Coil Resistance	3.7	Ohm
Coil Inductance at 1000 Hz	1.2	mH
Continuous Power	20	W

Pin Assignment

Pin	Description
1	+5 VDC Power
2	A- Channel of Quadrature Encoder
3	B+ Channel of Quadrature Encoder
4	A+ Channel of Quadrature Encoder
5	Return for +5 VDC Power
6	Reference Signal, Active High
7	B- Channel of Quadrature Encoder
8	Motor Minus
9	Motor Plus

Customized solutions can be provided upon request.
