Voice Coil Driven Stage
VCDS-032-038-02-B2-01



Comparison Table



Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 3.8 lb (16.6 N)
  • Intermittent Force: 11.8 lb (52.2 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-032-038-02-B2-01
 Enlarge
Datasheet in PDF

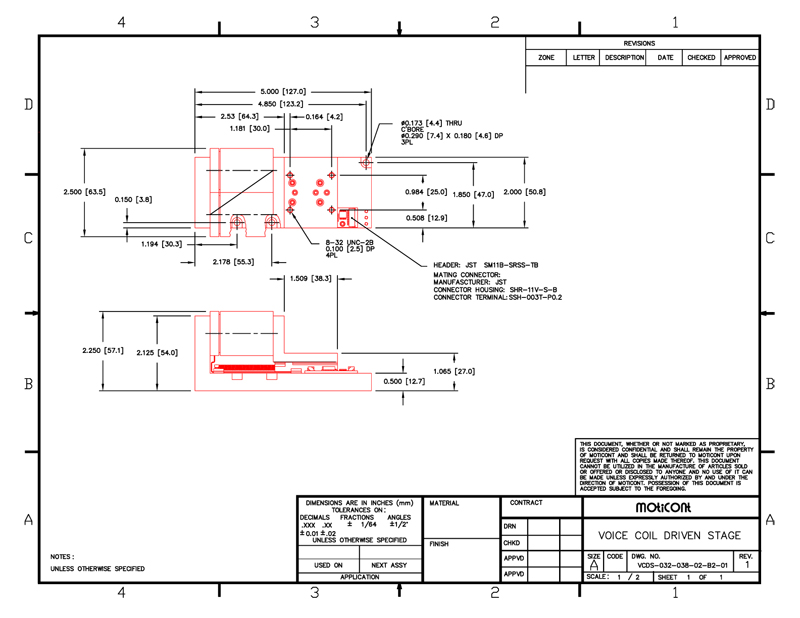

Drawing quick view

STAGE SPECIFICATIONS

Intermittent Force @ 10% Duty Cycle

 52.2 N

11.8

 lb
Continuous Force 16.6 N

3.8

 lb

Force Constant

 4.2 N/A

0.94

 lb/A
BACK EMF Constant 4.2 V/M/S

0.11

 V/in/S

Stroke

 24.6 mm

0.97

 in
Moving Mass 470 gr

16.6

 oz

Total Mass

 855 gr

30.2

 oz

Coil Resistance

 2.1 Ohm

Coil Inductance at 1000 Hz

 0.6 mH

Continuous Power

 32 W

Pin Assignment

Pin

 Description

1

 +5 VDC Power

2

 A- Channel of Quadrature Encoder

3

 B+ Channel of Quadrature Encoder

4

 A+ Channel of Quadrature Encoder

5

 Return for +5 VDC Power

6

 Reference Signal, Active High

7

 B- Channel of Quadrature Encoder

8

 Motor Minus

9

 Motor Plus

 Customized solutions can be provided upon request.
