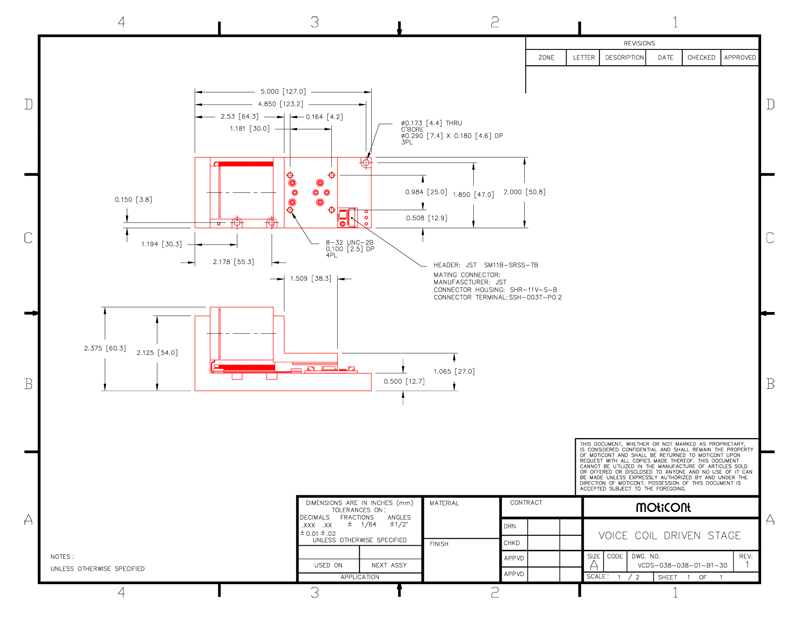

STAGE SPECIFICATIONS |
|
Intermittent Force @ 10% Duty Cycle |
42.5 |
N |
9.5 |
lb |
|
Continuous Force |
13.4 |
N |
3.0 |
lb |
|
Force Constant |
10.1 |
N/A |
2.3 |
lb/A |
|
BACK EMF
Constant |
10.1 |
V/M/S |
0.26 |
V/in/S |
|
Stroke |
24.6 |
mm |
0.97 |
in |
|
Moving Mass |
351 |
gr |
12.4 |
oz |
|
Total
Mass |
708 |
gr |
25.0 |
oz |
|
Coil Resistance |
10.1 |
Ohm |
|
Coil Inductance at 1000 Hz |
3.7 |
mH |
|
Continuous Power |
18 |
W |
|
Pin |
Description |
|
1 |
+5 VDC Power |
|
2 |
A- Channel of Quadrature Encoder |
|
3 |
B+ Channel of Quadrature Encoder |
|
4 |
A+ Channel of Quadrature Encoder |
|
5 |
Return for +5 VDC Power |
|
6 |
Reference Signal, Active High |
|
7 |
B- Channel of Quadrature Encoder |
|
8 |
Motor Minus |
|
9 |
Motor Plus |
Customized solutions can be
provided upon request.
|
