Voice Coil Driven Stage
VCDS-051-032-01-B1-30



Comparison Table



Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-051-032-01-B1-30
 Enlarge
Datasheet in PDF

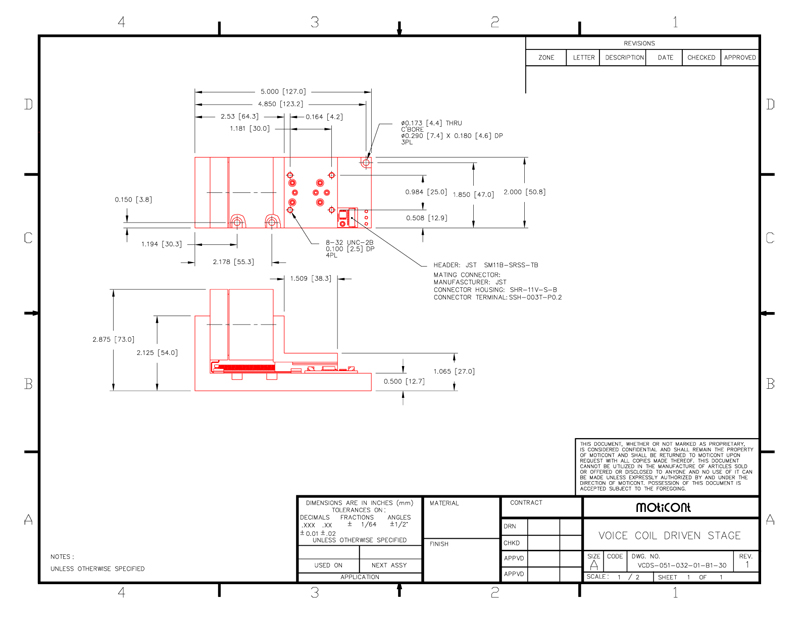

Drawing quick view

STAGE SPECIFICATIONS

Intermittent Force @ 10% Duty Cycle

 89.9 N

20.0

 lb
Continuous Force 28.2 N

6.3

 lb

Force Constant

 8.4 N/A

1.9

 lb/A
BACK EMF Constant 8.4 V/M/S

0.21

 V/in/S

Stroke

 24.6 mm

0.97

 in
Moving Mass 486 gr

17.1

 oz

TotalMass

 886 gr

31.3

 oz

Coil Resistance

 2.2 Ohm

Coil Inductance at 1000 Hz

 0.8 mH

Continuous Power

 25 W

Pin Assignment

Pin

 Description

1

 +5 VDC Power

2

 A- Channel of Quadrature Encoder

3

 B+ Channel of Quadrature Encoder

4

 A+ Channel of Quadrature Encoder

5

 Return for +5 VDC Power

6

 Reference Signal, Active High

7

 B- Channel of Quadrature Encoder

8

 Motor Minus

9

 Motor Plus

 Customized solutions can be provided upon request.
