Linear Motor with Internal Shaft & Bearing, GVCM-016-010-01

Housing Outside Diameter, 0.625 inch, 15.9 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-016-013-01	0.25	inch	5.7	oz	17.9	oz	0.500	inch
Datasheet in PDF	6.4	mm	1.6	N	5.0	N	12.7	mm

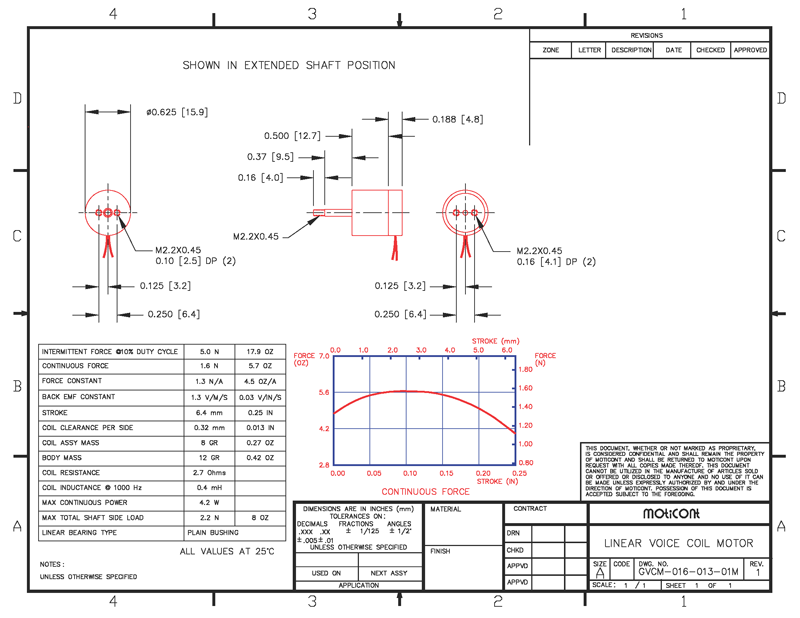

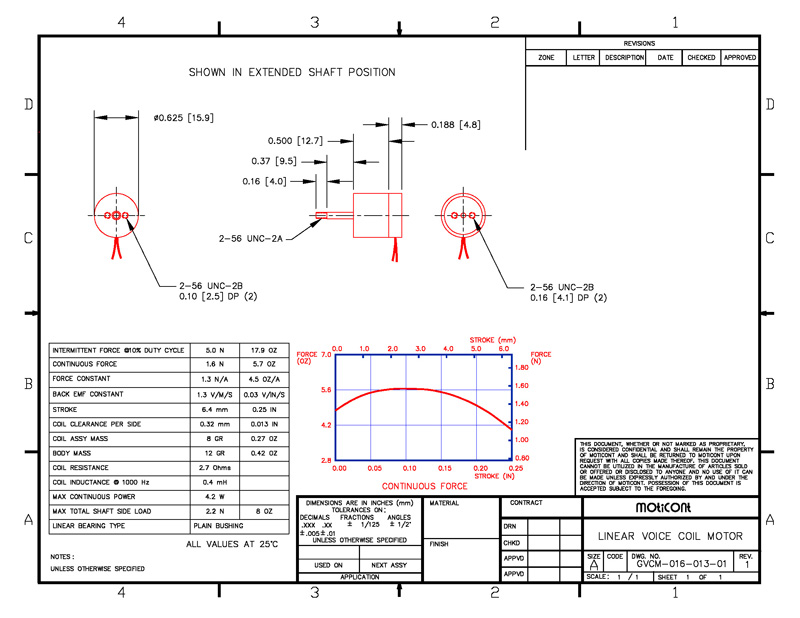

Drawing quick view
