Linear Motor with Internal Shaft & Bearing

GVCM-016-019-01




Housing Outside Diameter, 0.625 inch, 15.9 mm


Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-016-019-01 0.50 inch 5.3 oz 16.6 oz 0.750 inch
Datasheet in PDF 12.7 mm 1.5 N 4.6 N 19.1 mm

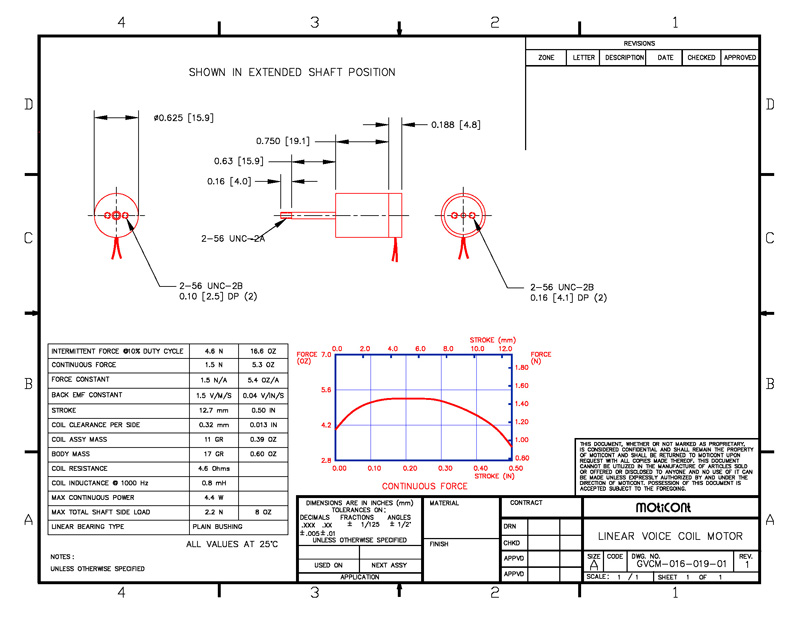

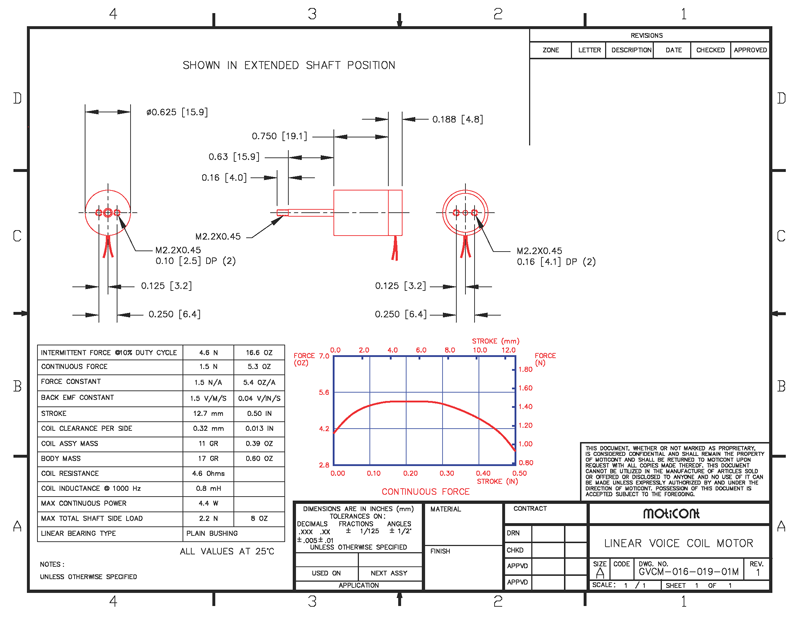

Drawing quick view
