Linear Motor with Internal Shaft & Bearing, GVCM-019-016-02

Housing Outside Diameter, 0.750 inch, 19.1 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-019-016-02	0.250	inch	7.4	oz	23.7	oz	0.625	inch
Datasheet in PDF	6.4	mm	2.1	N	6.6	N	15.9	mm

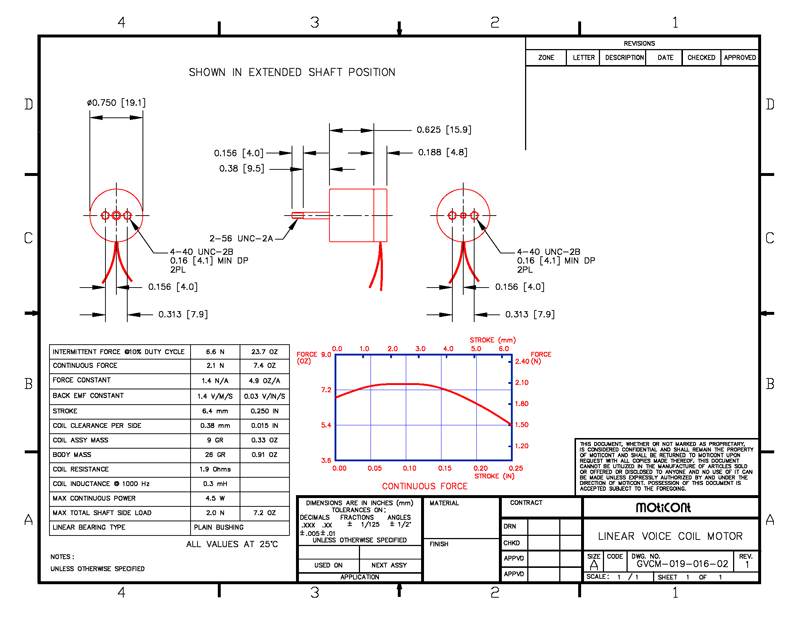

Drawing quick view
