Linear Motor with Internal Shaft & Bearing, GVCM-025-022-01

Housing Outside Diameter, 1.000 inch, 25.4 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-025-022-01	0.375	inch	16.9	oz	53.5	oz	0.875	inch
Datasheet in PDF	9.5	mm	4.7	N	14.9	N	22.2	mm

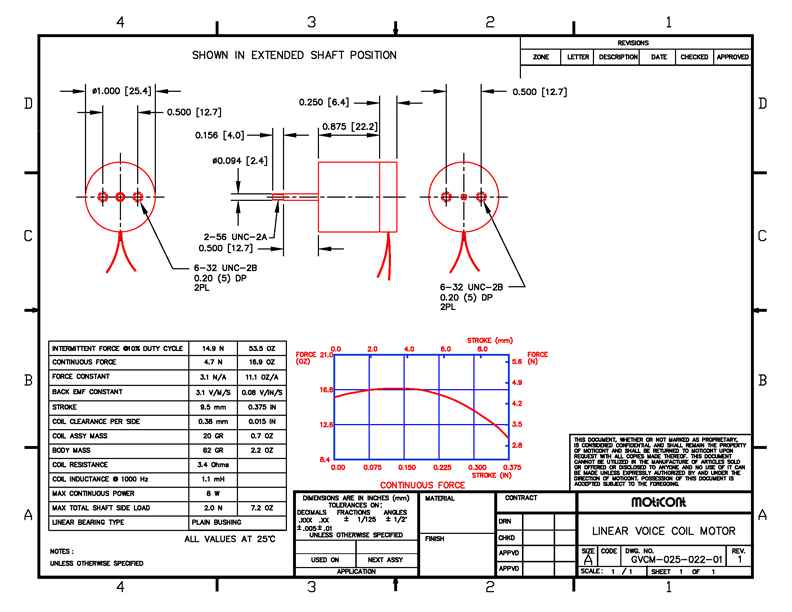

Drawing quick view
