Linear Motor with Internal Shaft & Bearing, GVCM-025-029-01

Housing Outside Diameter, 1.000 inch, 25.4 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-025-029-01	0.625	inch	18.2	oz	57.5	oz	1.125	inch
Datasheet in PDF	15.9	mm	5.1	N	16.0	N	28.6	mm

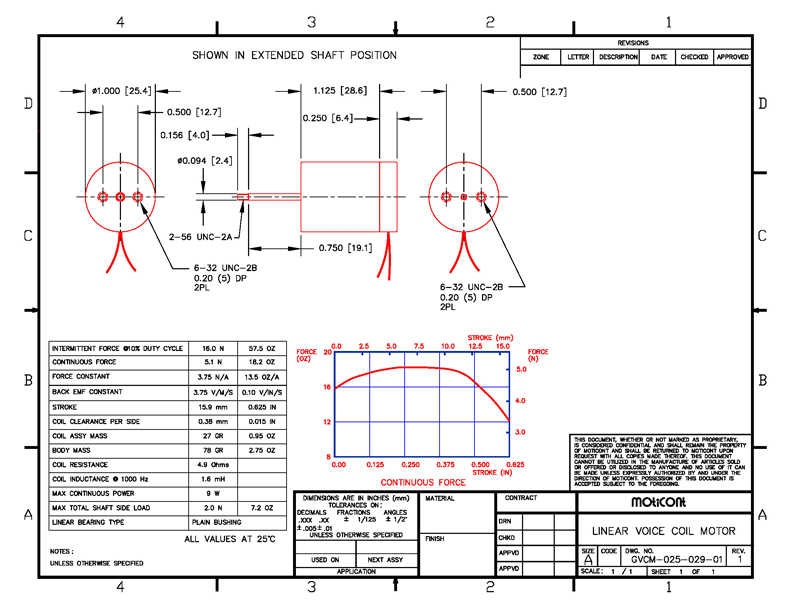

Drawing quick view
