Hollow Core Linear Voice Coil Motors, HVCM-016-010-003-01 Continuous Force: 5.0 oz (1.4 N), Stroke: 0.125 in (3.2 mm)

Housing Outside Diameter, 0.625 inch, 15.9 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length		Through Hole Dia.
HVCM-016-010-003-01	0.125	inch	5.0	oz	15.7	oz	0.375	inch	0.125	inch
Datasheet in PDF	3.2	mm	1.4	N	4.4	N	9.5	mm	3.2	mm

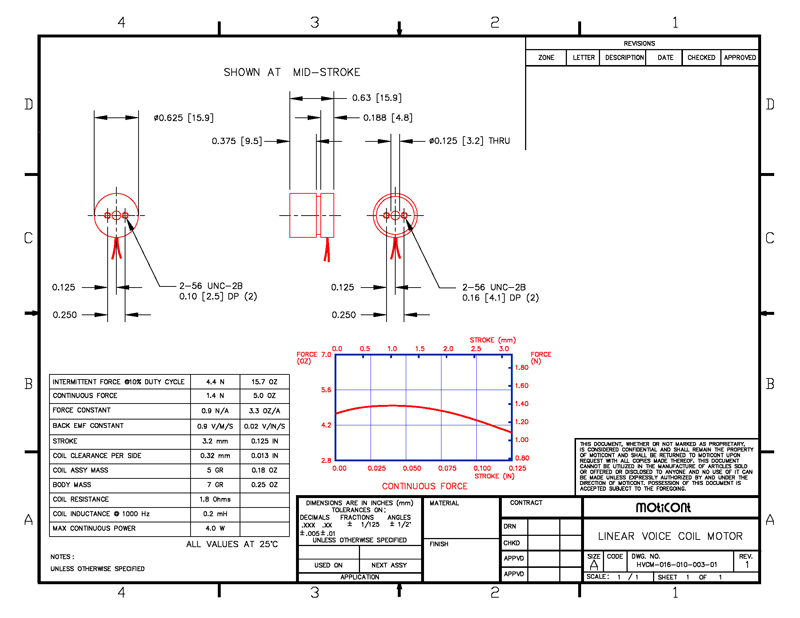

Drawing quick view
