Hollow Core Linear Voice Coil Motors, HVCM-016-013-003-01 Continuous Force: 5.7 oz (1.6 N), Stroke: 0.25 in (6.4 mm)

Housing Outside Diameter, 0.625 inch, 15.9 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length		Through Hole Dia.
HVCM-016-013-003-01	0.25	inch	5.7	oz	17.9	oz	0.500	inch	0.125	inch
Datasheet in PDF	6.4	mm	1.6	N	5.0	N	12.7	mm	3.2	mm

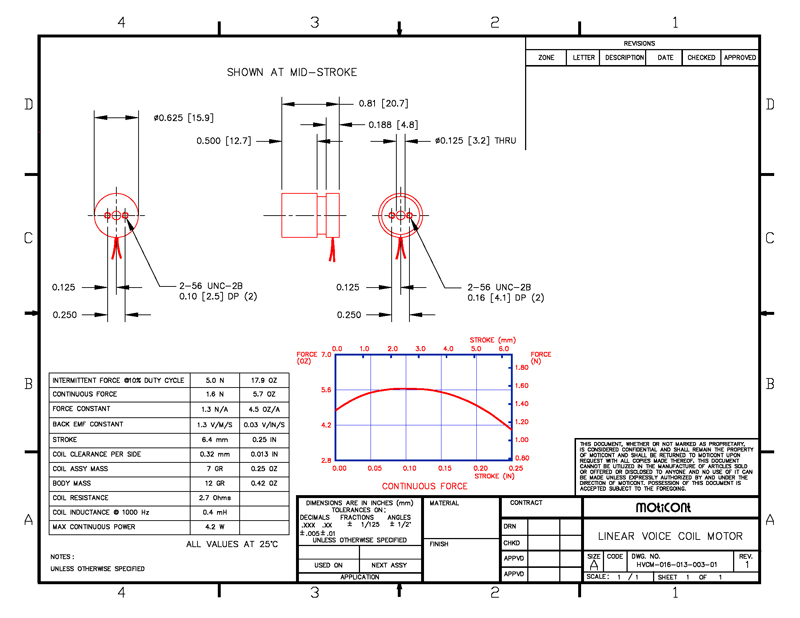

Drawing quick view
