Hollow Core Linear Voice Coil Motors

HVCM-016-019-003-01




Housing Outside Diameter, 0.625 inch, 15.9 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-016-019-003-01 0.50 inch 5.3 oz 16.6 oz 0.750 inch 0.125 inch
Datasheet in PDF 12.7 mm 1.5 N 4.6 N 19.1 mm 3.2 mm

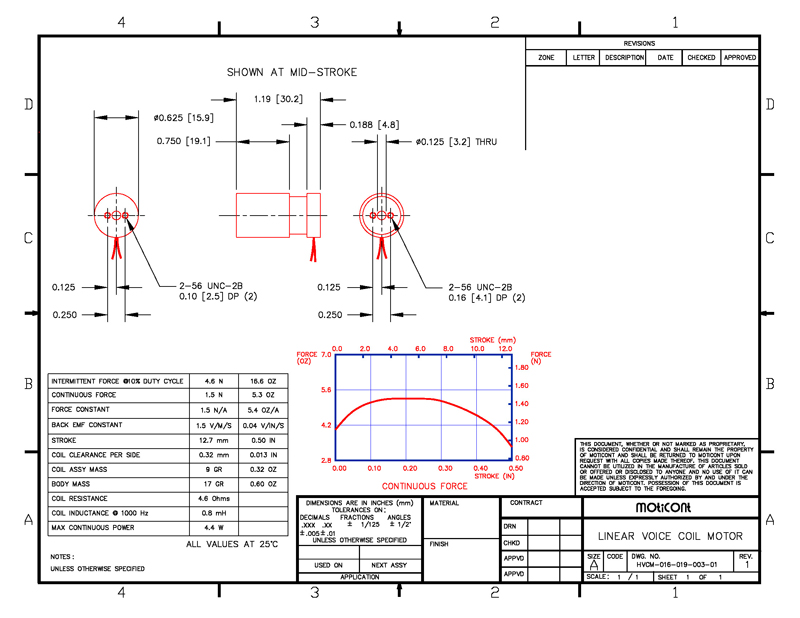

Drawing quick view
