Hollow Core Linear Voice Coil Motors, HVCM-019-016-003-02 Continuous Force: 7.4 oz (2.1 N), Stroke: 0.250 in (6.4 mm)

Housing Outside Diameter, 0.750 inch, 19.1 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length		Through Hole Dia.
HVCM-019-016-003-02	0.250	inch	7.4	oz	23.7	oz	0.625	inch	0.125	inch
Datasheet in PDF	6.4	mm	2.1	N	6.6	N	15.9	mm	3.2	mm

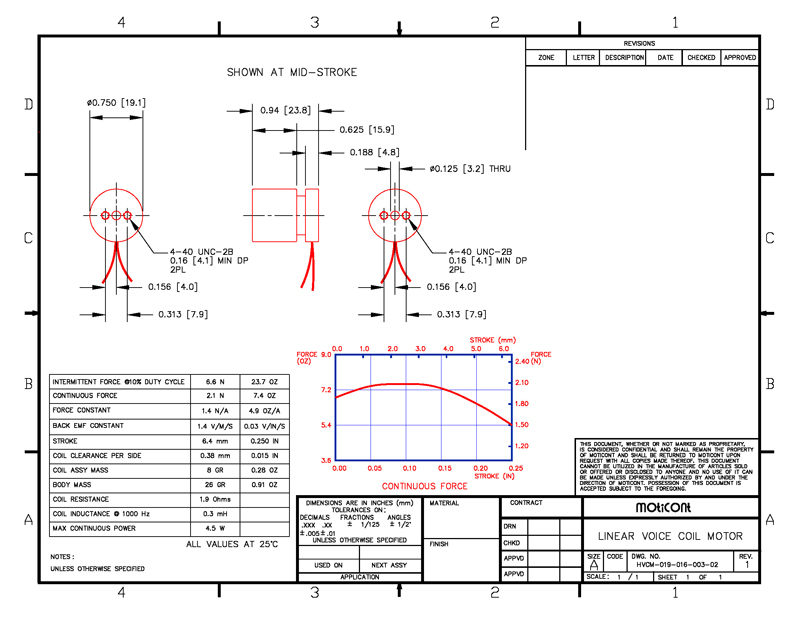

Drawing quick view
