Hollow Core Linear Voice Coil Motors

HVCM-019-022-003-02




Housing Outside Diameter, 0.750 inch, 19.1 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-019-022-003-02 0.500 inch 8.4 oz 26.6 oz 0.875 inch 0.125 inch
Datasheet in PDF 12.7 mm 2.3 N 7.4 N 22.2 mm 3.2 mm

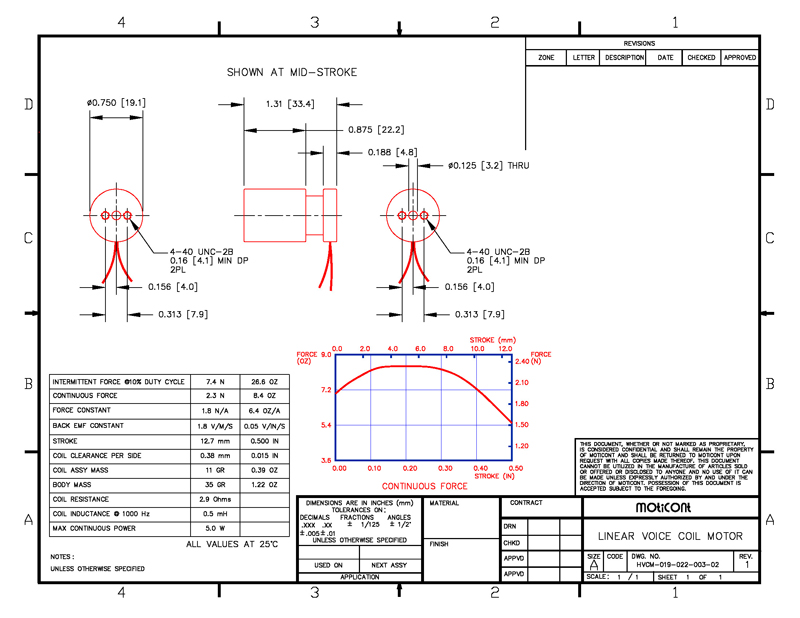

Drawing quick view
