Hollow Core Linear Voice Coil Motors, HVCM-051-051-013-01

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length		Through Hole Dia.
HVCM-051-051-013-01	0.75	inch	6.3	lb	19.9	lb	2.00	inch	0.50	inch
Datasheet in PDF	19.1	mm	28.0	N	88.6	N	50.8	mm	12.7	mm

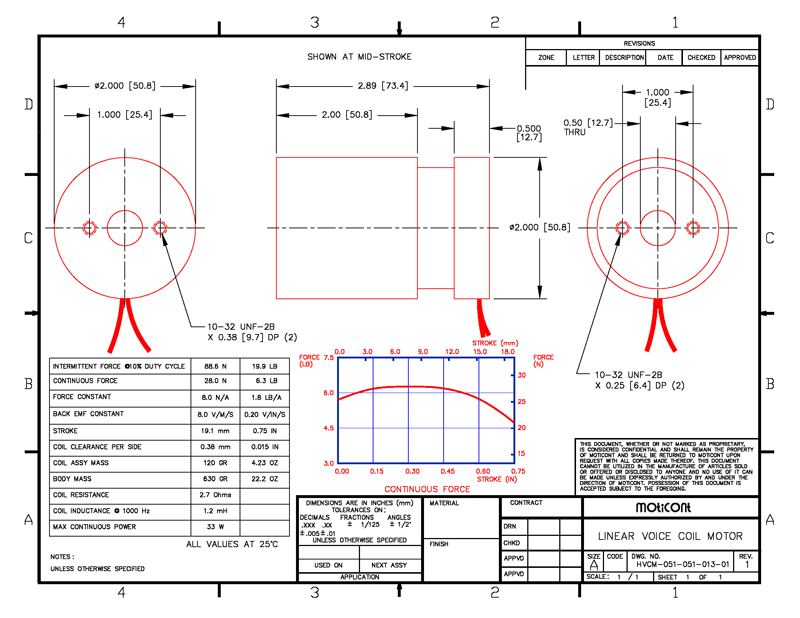

Drawing quick view
