Hollow Core Linear Voice Coil Motors, HVCM-051-064-019-01

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length		Through Hole Dia.
HVCM-051-064-019-01	1.50	inch	4.7	lb	14.9	lb	2.50	inch	0.75	inch
Datasheet in PDF	31.8	mm	21.0	N	66.3	N	63.5	mm	19.1	mm

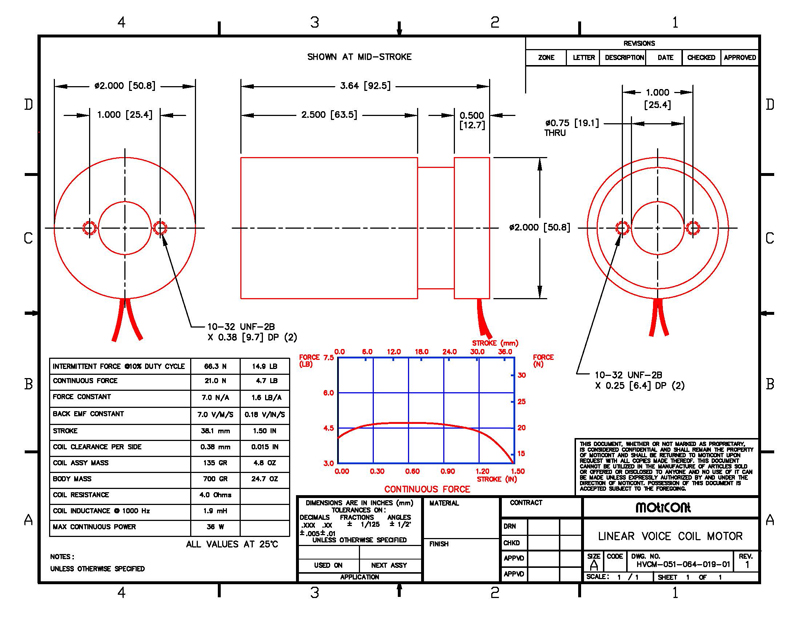

Drawing quick view
